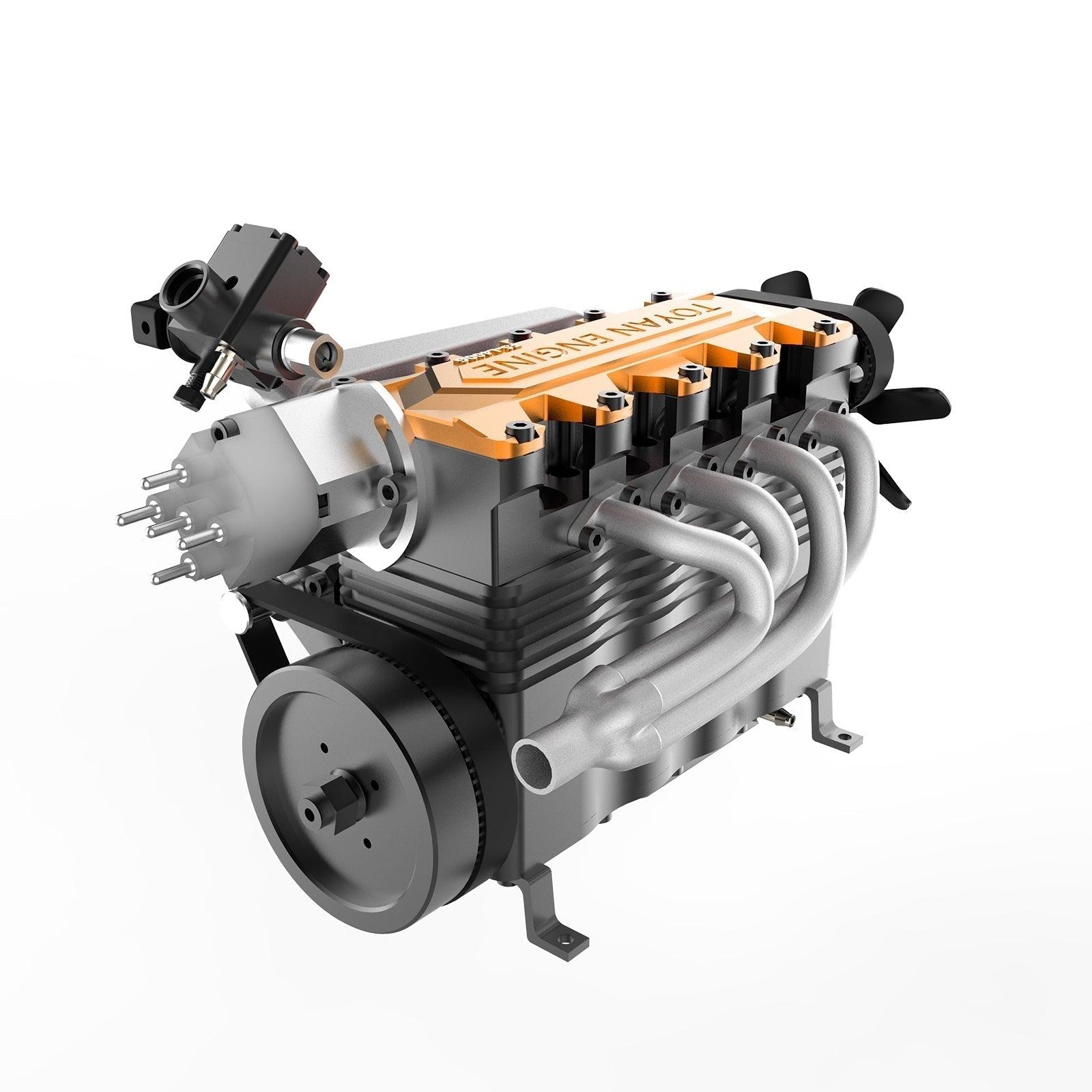

Puzzloria | DIY OHC L4 Engine 14CC Gasoline Water-cooled Engine Model Kit FS-L400BGC

TOYAN L400BGC Engine Model that Works - Build Your Own Engine - New Updated TOYAN FS-L400BGC 14cc Inline 4 Cylinder Four-stroke Water-cooled Gas Engine Model Kit for 1:8 1:10 1:12 1:14 Model Car Ship Airplane

Promotion Info:

See What's New in TOYAN L400BGC Engine!

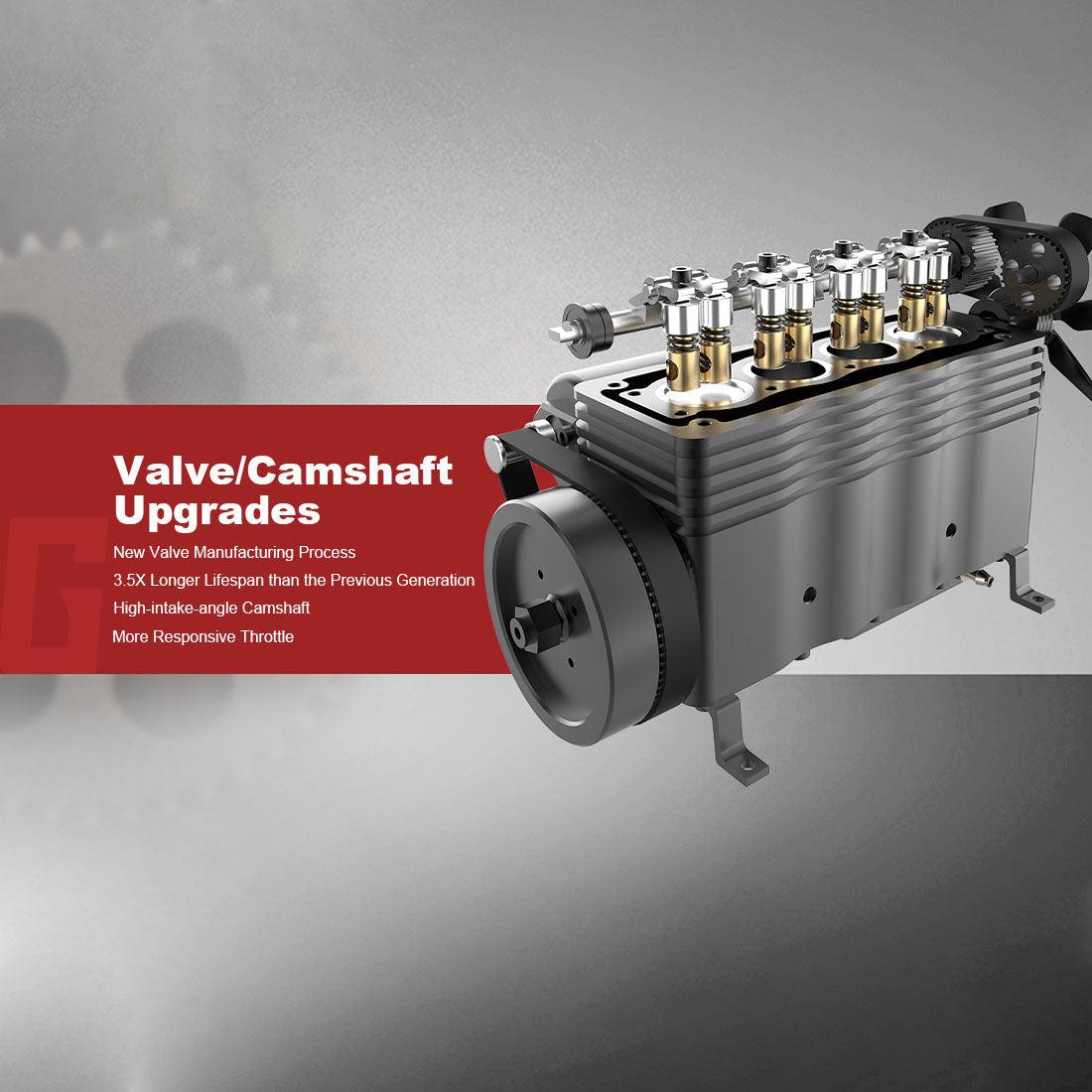

• Valve/ Camshaft Upgrade: Introducing the upgraded TOYAN FS-L400BGC 14CC Gasoline Engine. With a high-angle camshaft and improved valve manufacturing process, enjoy a 3.5x longer lifespan and increased throttle response. Perfect addition to your RC model car, ship, or airplane.

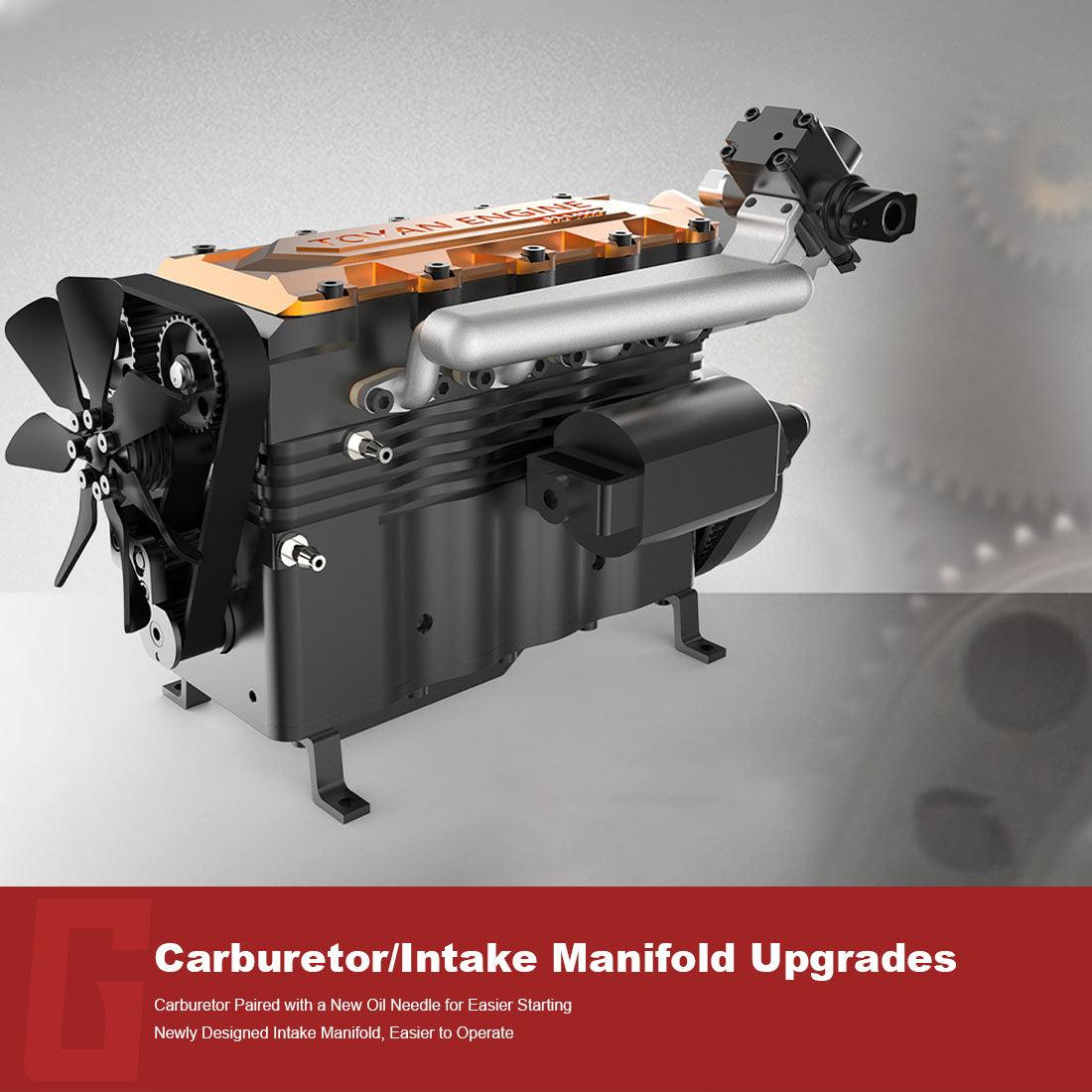

• Carburetor/ Intake Upgrade: The carburetor has been revamped with a corresponding fuel needle to facilitate engine start-up. Additionally, a newly designed intake manifold ensures effortless operation for the user.

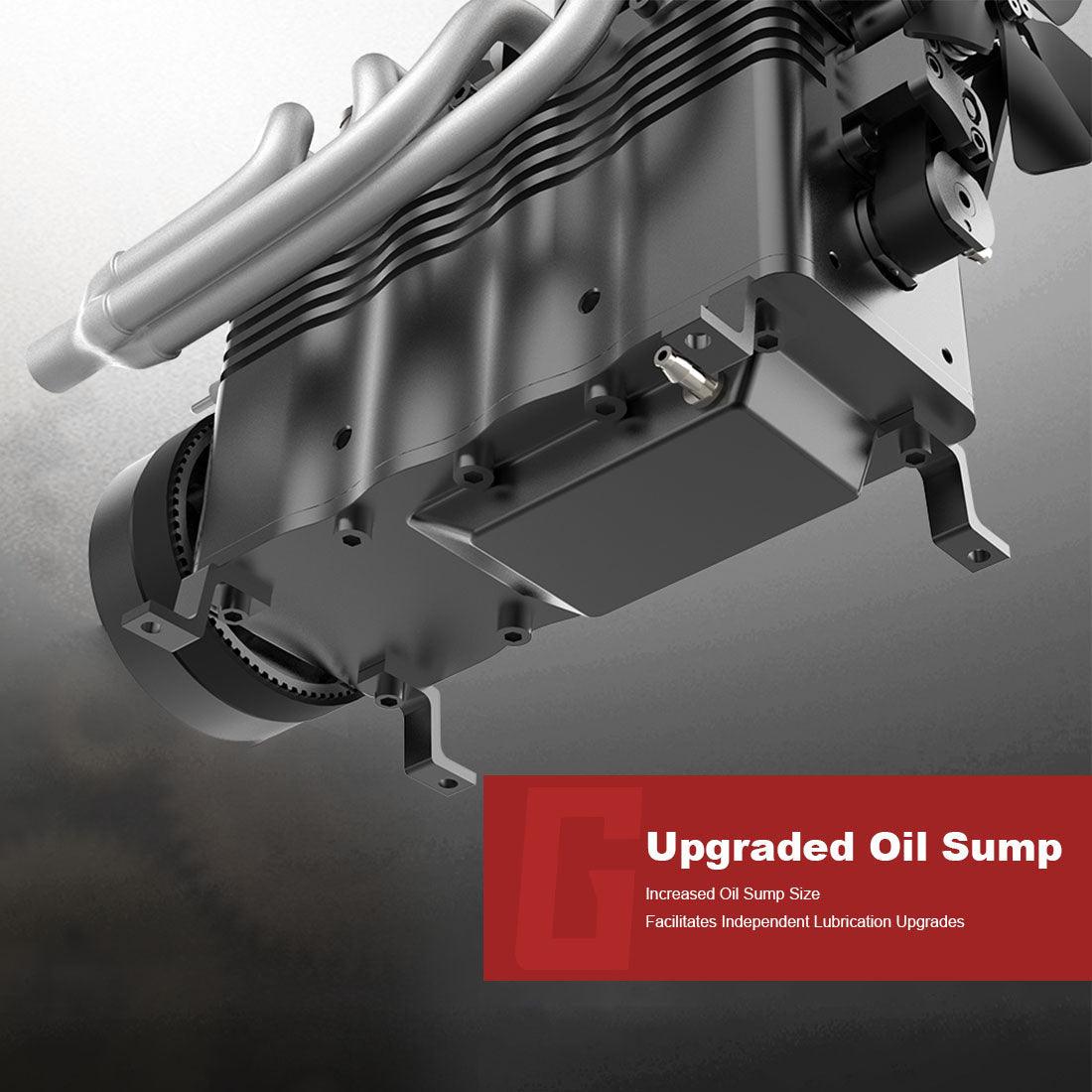

• Oil Sump Upgrade: Increased the size of the oil sump to allow for independent lubrication during future upgrades.

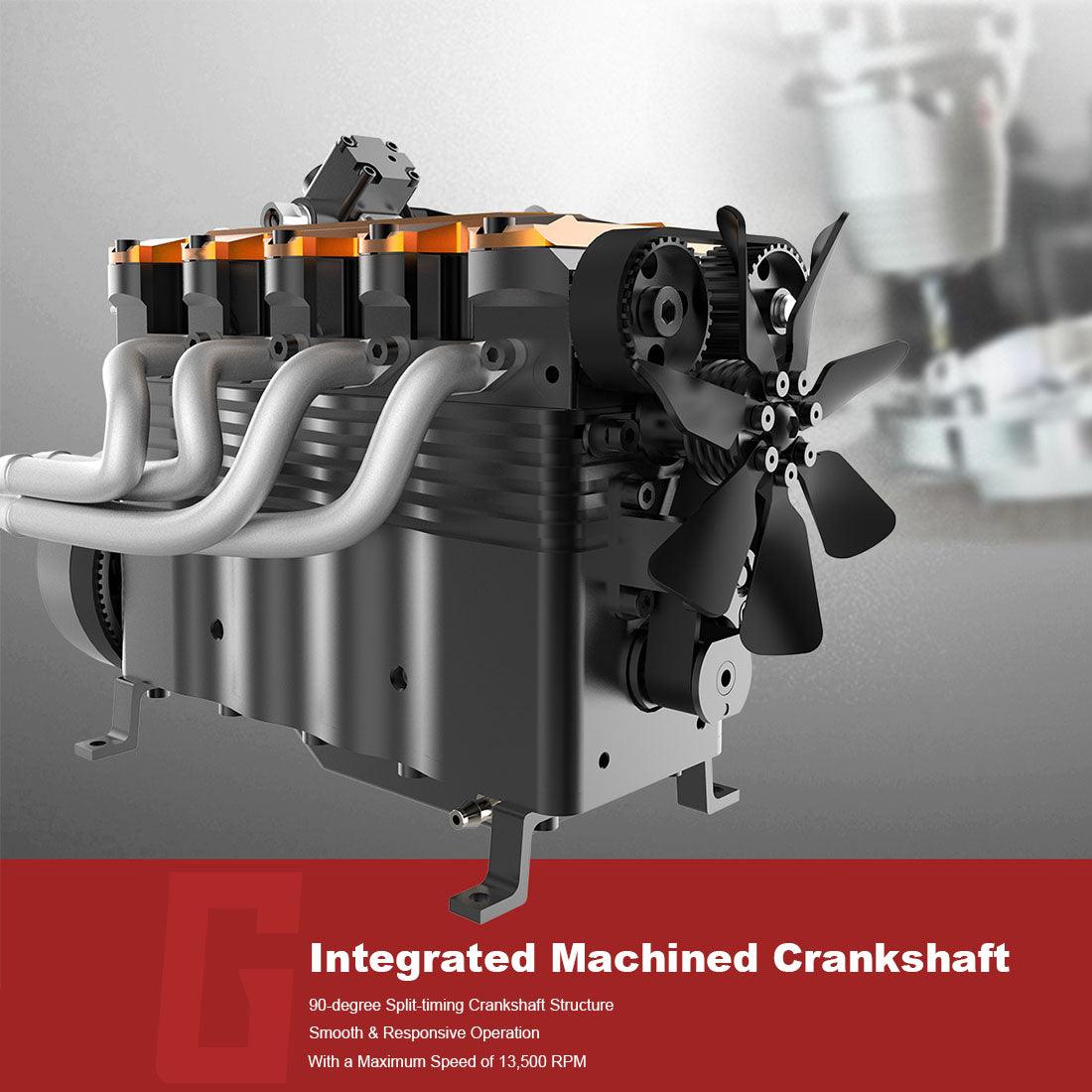

• Integrated Crankshaft: Utilizing a 90-degree phased crankshaft design, this engine offers superior performance with a maximum speed of 13500rpm. Its smooth and responsive operation is ideal for RC model cars, ships, and airplanes.

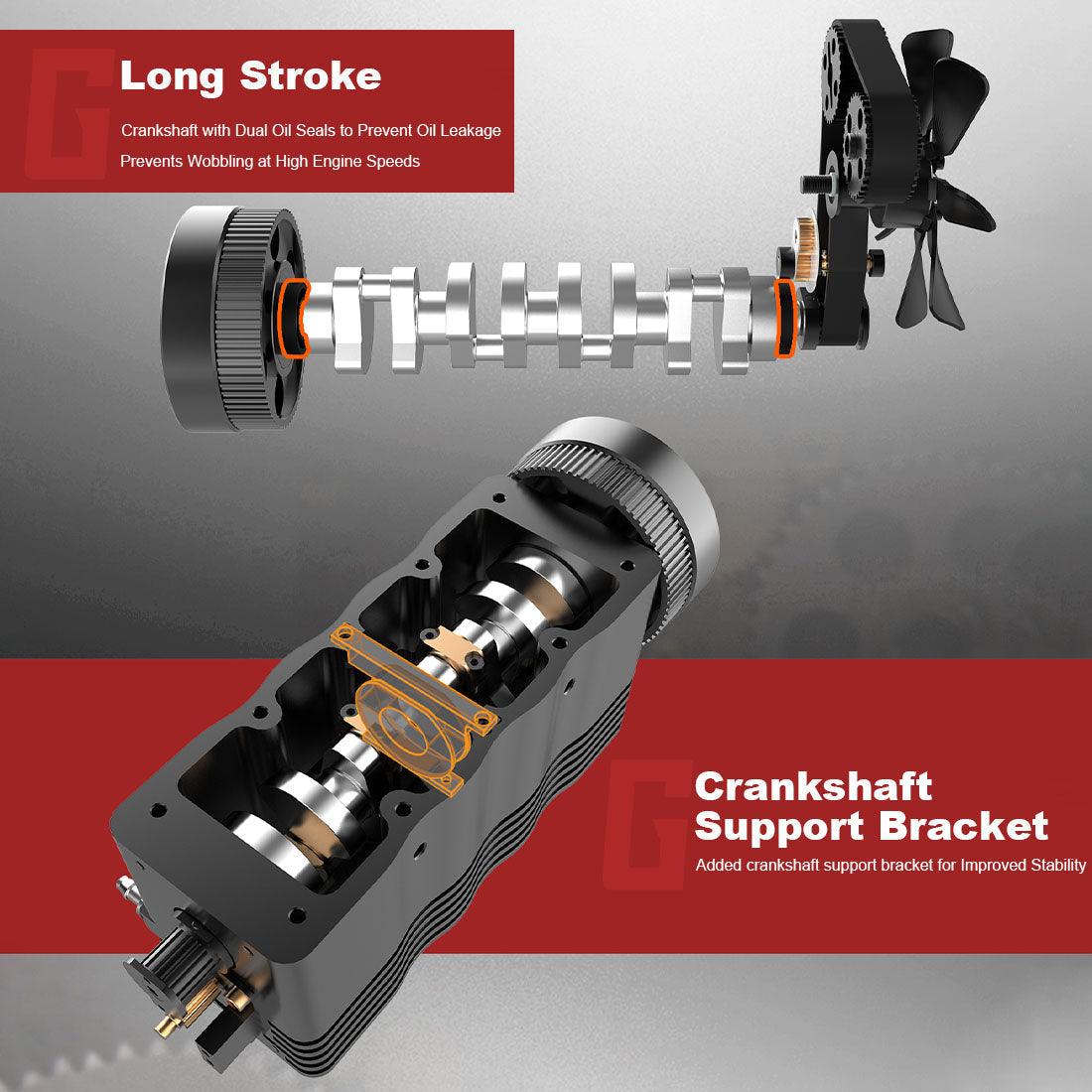

• Crankshaft Support Bracket: The addition of a new crankshaft support frame improves the strength and stability of the engine during high-speed operation. This enhancement increases overall operating stability and performance.

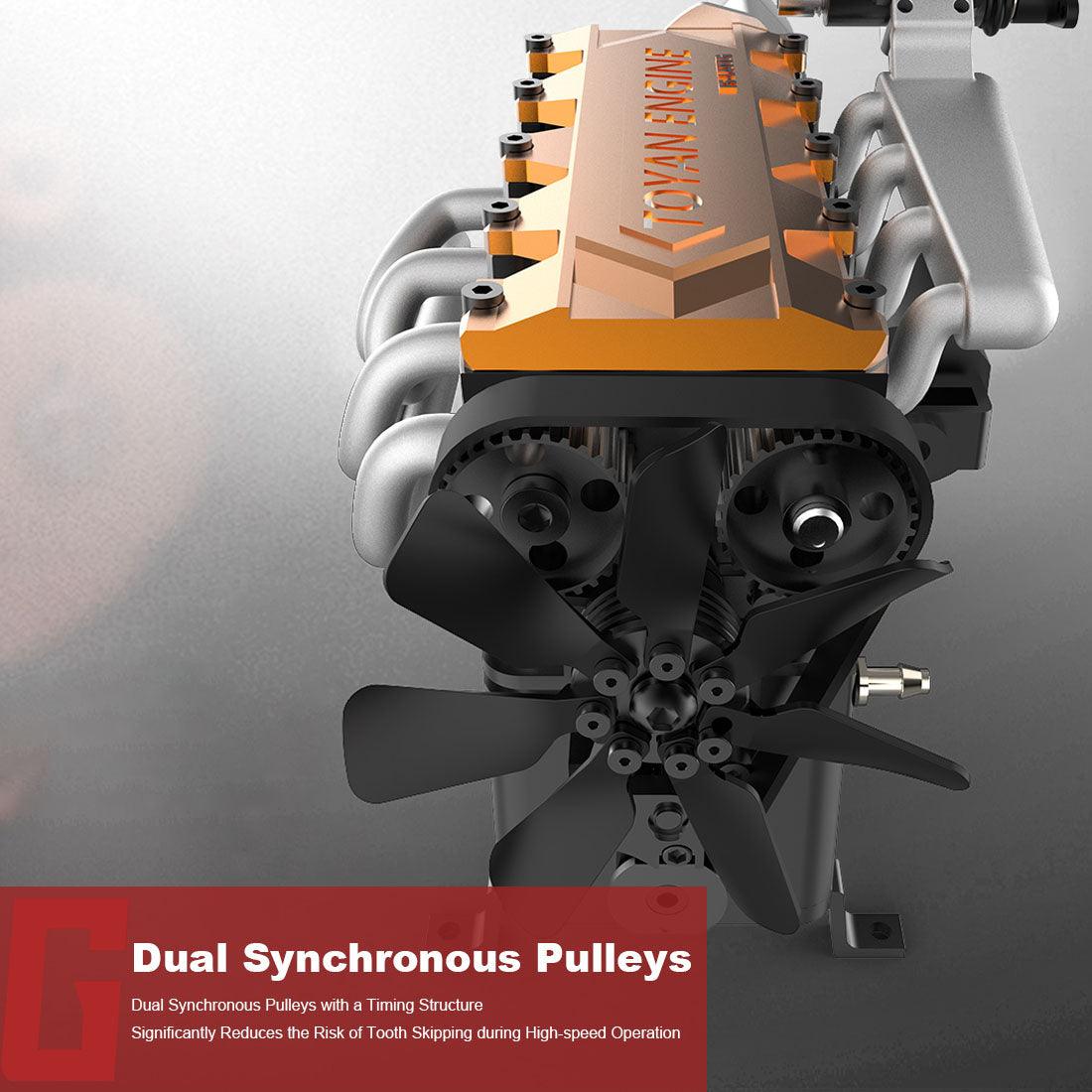

• Dual Synchronous Pulleys: Dual synchronous pulley timing structure greatly reduces the risk of tooth skipping during high-speed operation.
• Long Stroke:The precision of the dual oil seal system on the crankshaft effectively prevents oil leakage and ensures stability even at high engine speeds, maintaining optimal performance during fast-paced operation.
• Highly Simulation - More Realistic: This engine model boasts a sporty gold design, providing a highly realistic and lifelike appearance. It runs on actual gasoline for an authentic experience.
• Fun DIY: Precision manufacturing and assembly based on instructions, facilitating comprehension of the engine's structure and mechanical principles.
• Age Recommendation: 16+

Warm Reminder:
This TOYAN L400BGC engine is in KIT version and it needs assemble. It does not come with any accessories like base, spark plugs, ignition accessories, water cooling accessories, etc.
Attention please follow the instructions to avoid any damage to the engine.

More Details:

• Material: Metal
• Brand: TOYAN
• Model: FS-L400BGC
• Form: Kit Version
• Engine Type: Gasoline Internal Combustion Engine
• Valve Mechanism Type: OHC (Overhead Camshaft)
• Displacement: 14cc (4 x 3.5cc)
• Cylinders: Inline Four-Cylinder
• Stroke: Four-Stroke
• Bore Diameter: 16.6mm
• Stroke Length: 17.0mm
• RPM Range: 3200-13500rpm
• Power Output: 3.05hp
• Cooling System: Water-Cooled + Air-Cooled
• Lubrication Method: Splash Lubrication (Upgradable to Independent Lubrication)
• Start Mechanism: Electric Start
• Ignition Method: CDI Ignition
• Spark Plug Type: 1/4-32 Thread ME8 Type Spark Plug
• Start Power Source: 6-12V, Recommended 2S-3S Lipo Battery
• Fuel Type: 92# and Above Gasoline
• Lubricating Oil Type: Common Lubricating Grease (Regularly applied to the camshaft)
• Product Weight: 1250g

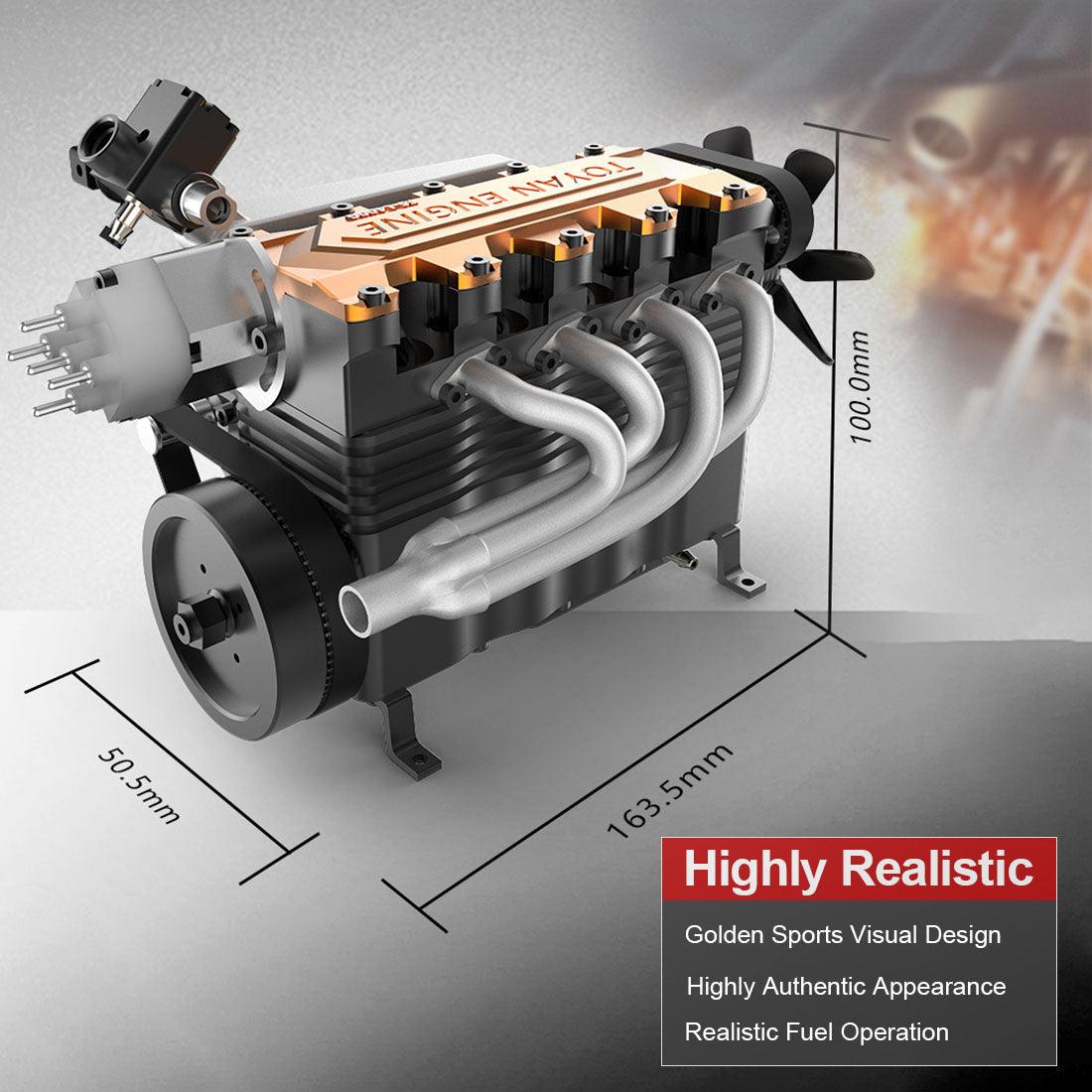

• Product Dimensions: 16.35 x 5.05 x 10cm
• Package Dimensions: 21.5 x 21.5 x 17cm
• Package Weight: 1950g

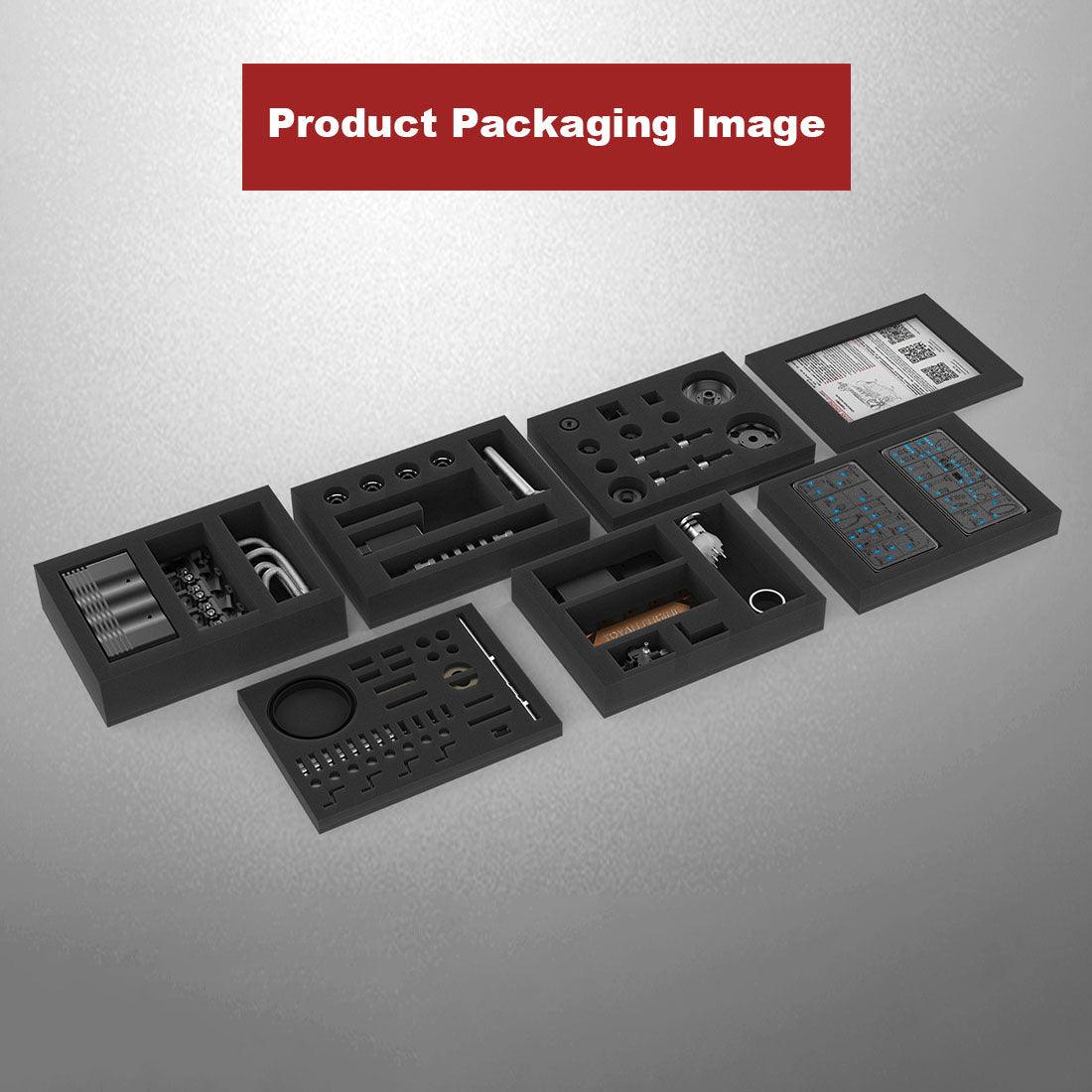

• Packing: Box

Package List:

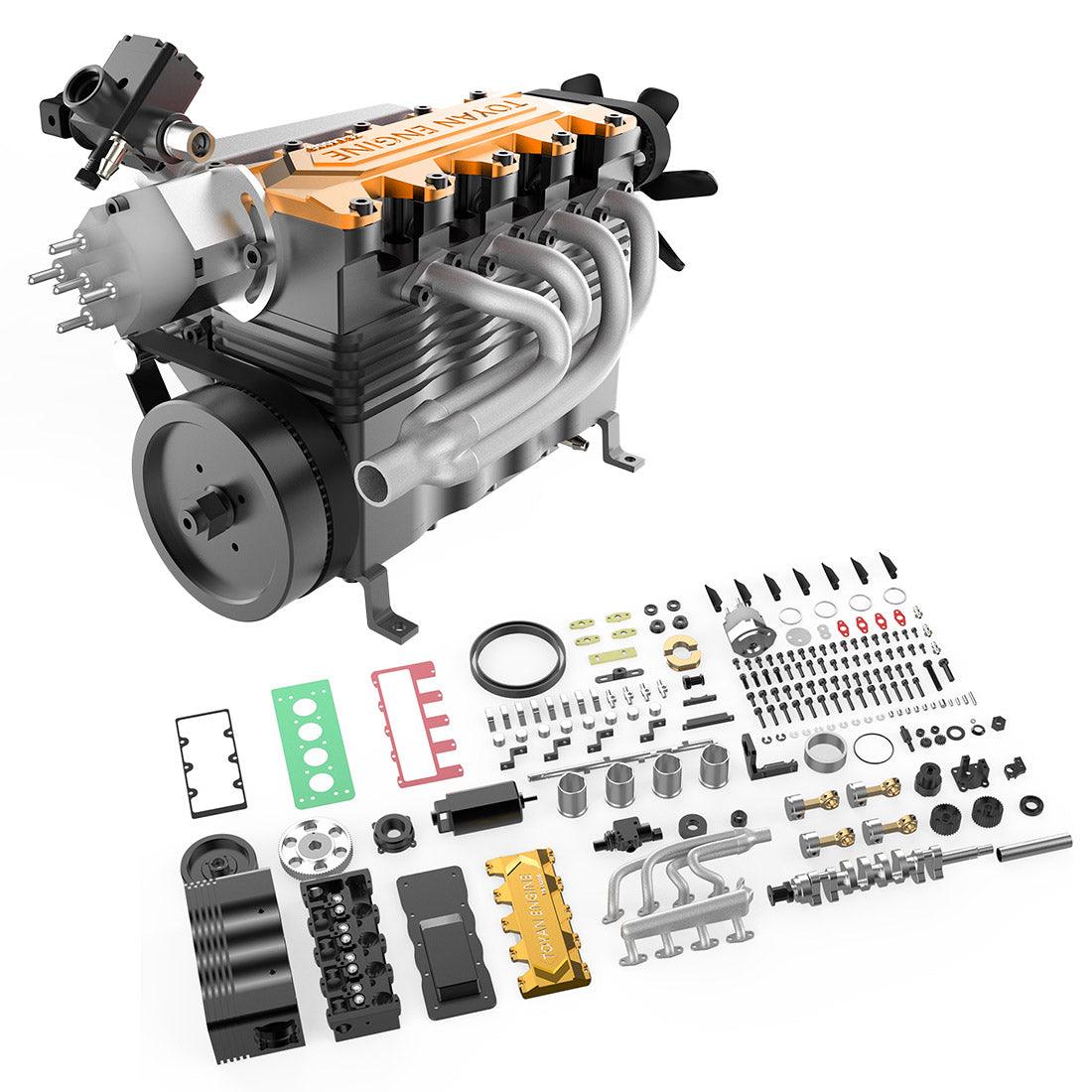

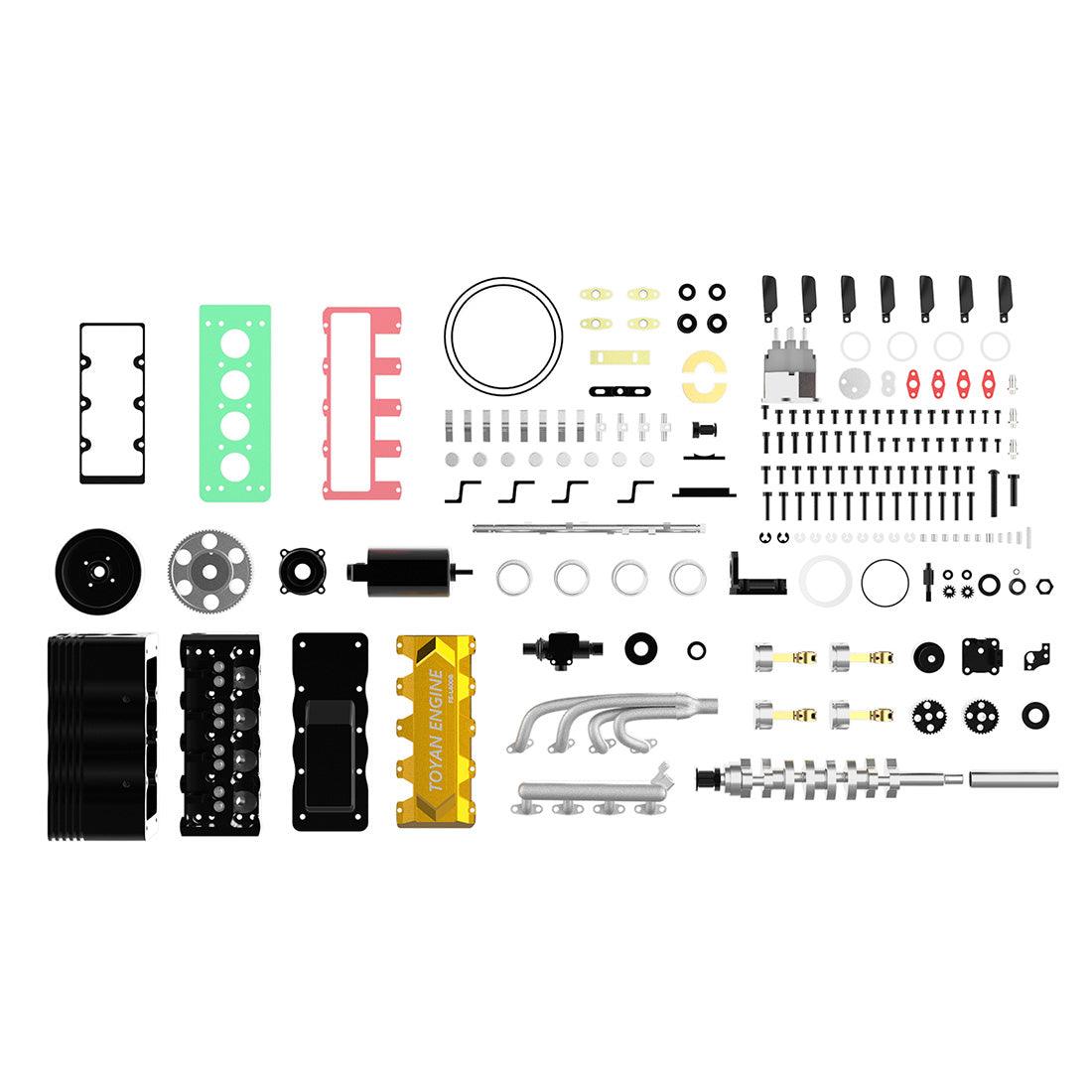

• 1 x TOYAN FS-L400BGC Engine Model Kit
• 1 x Tool Set for TOYAN Engine
• 1 x Instructions
