Puzzloria | DIY 1/6 Gasoline Internal Combustion V8 Water-Cooled Engine 44CC Model Kit

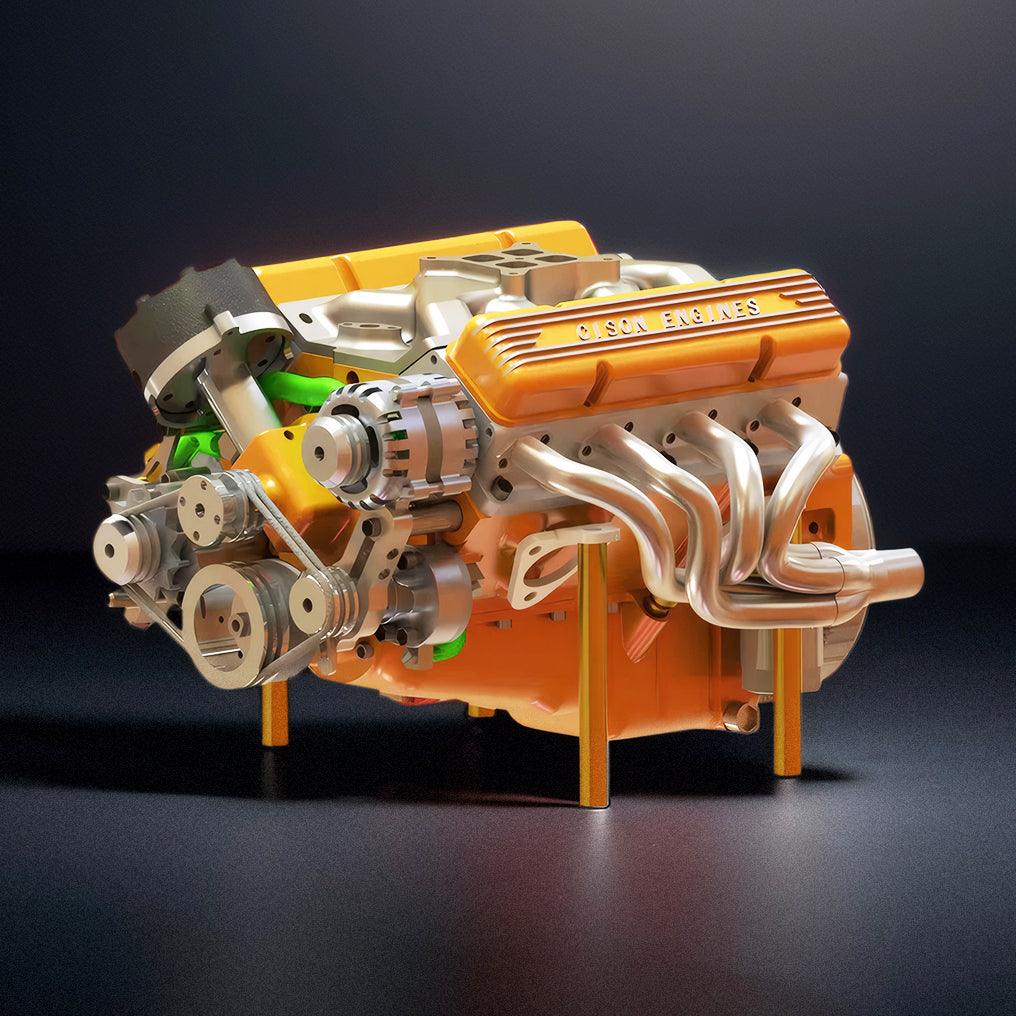

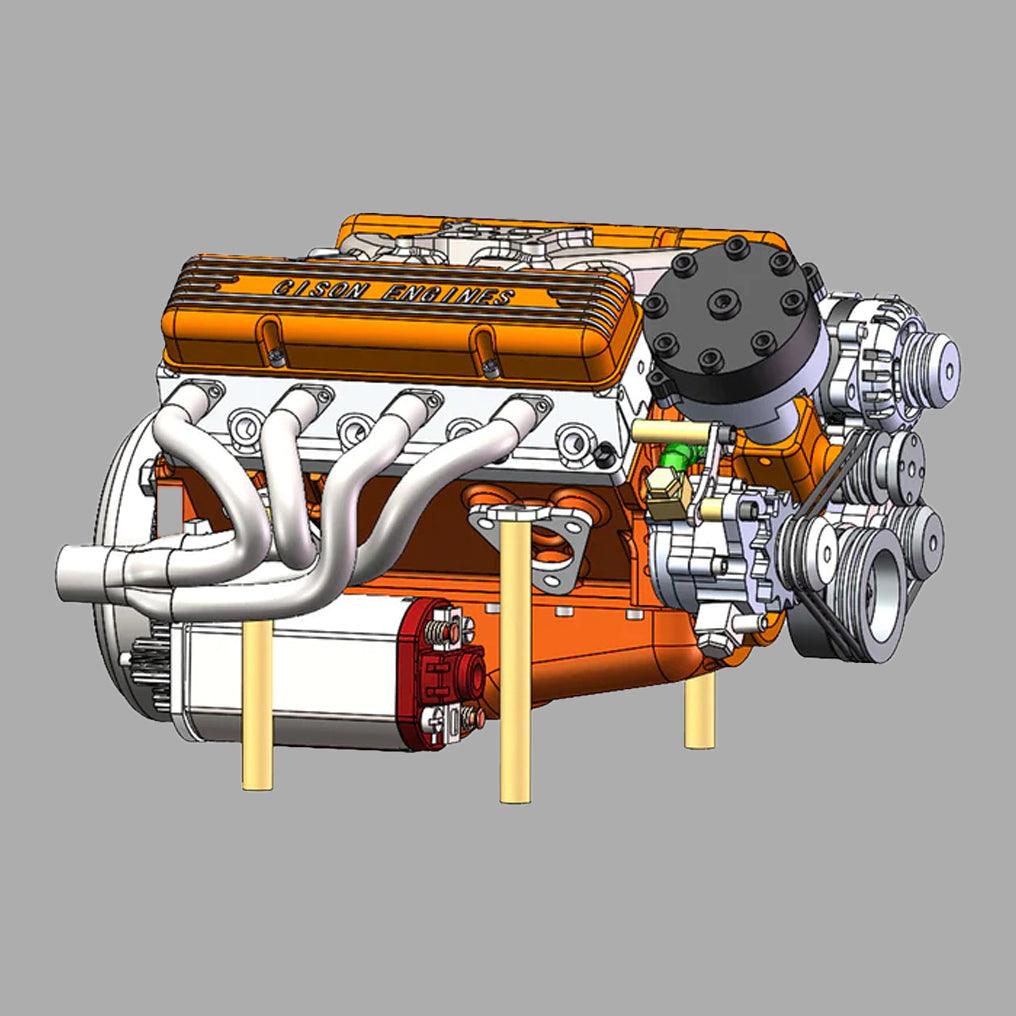

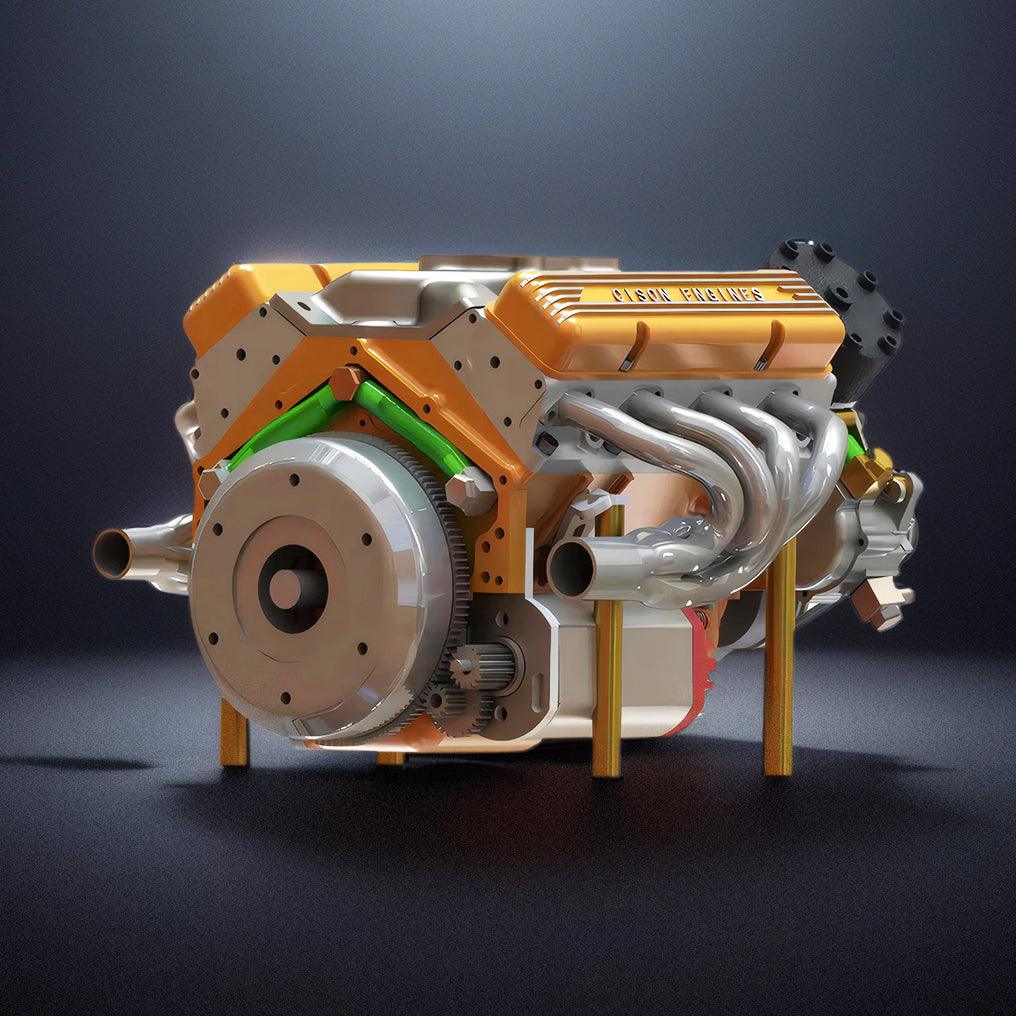

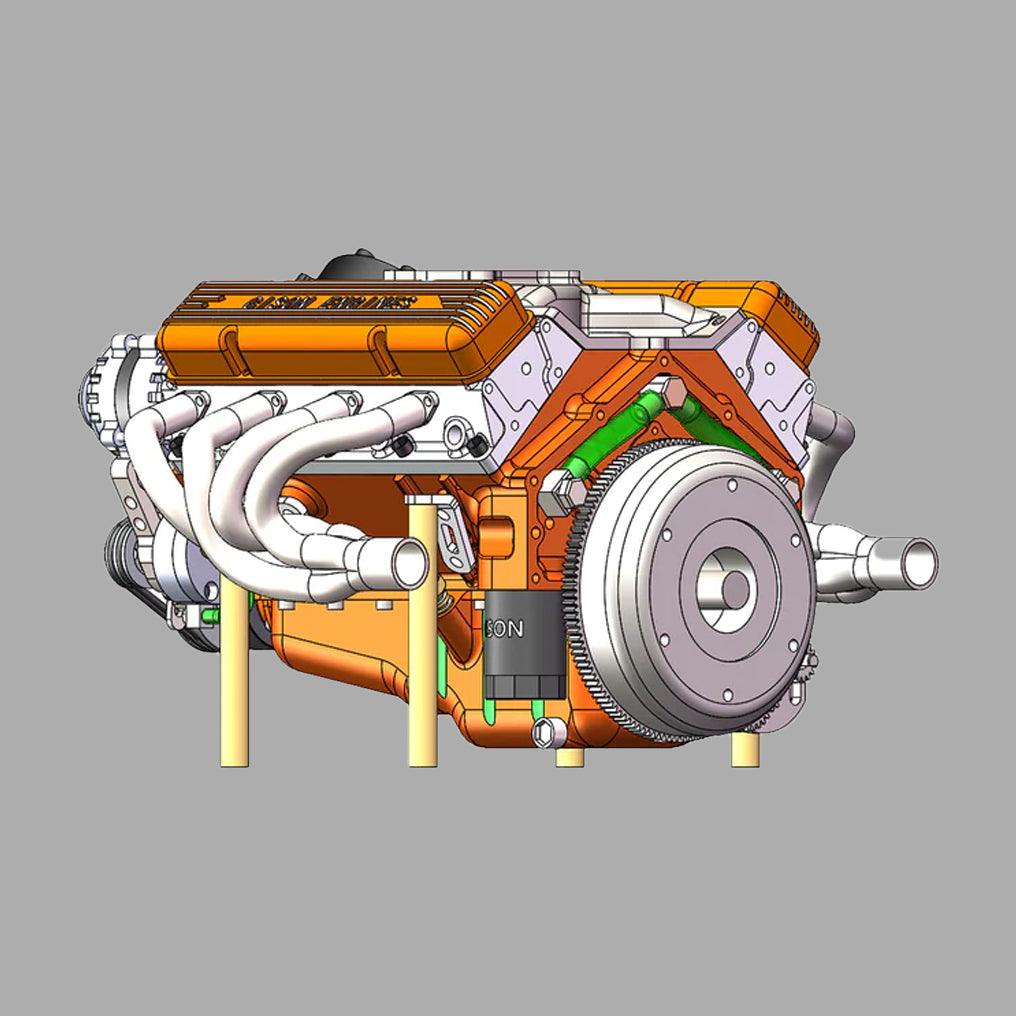

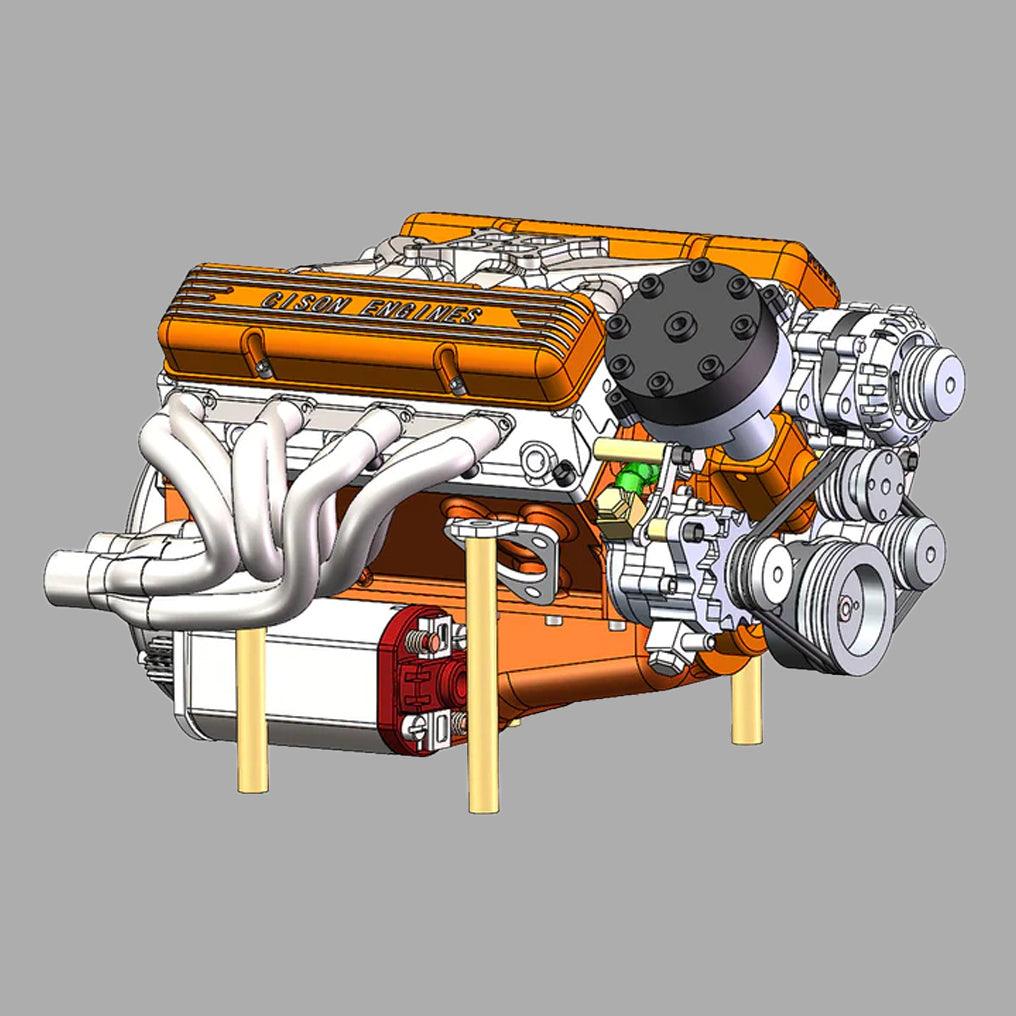

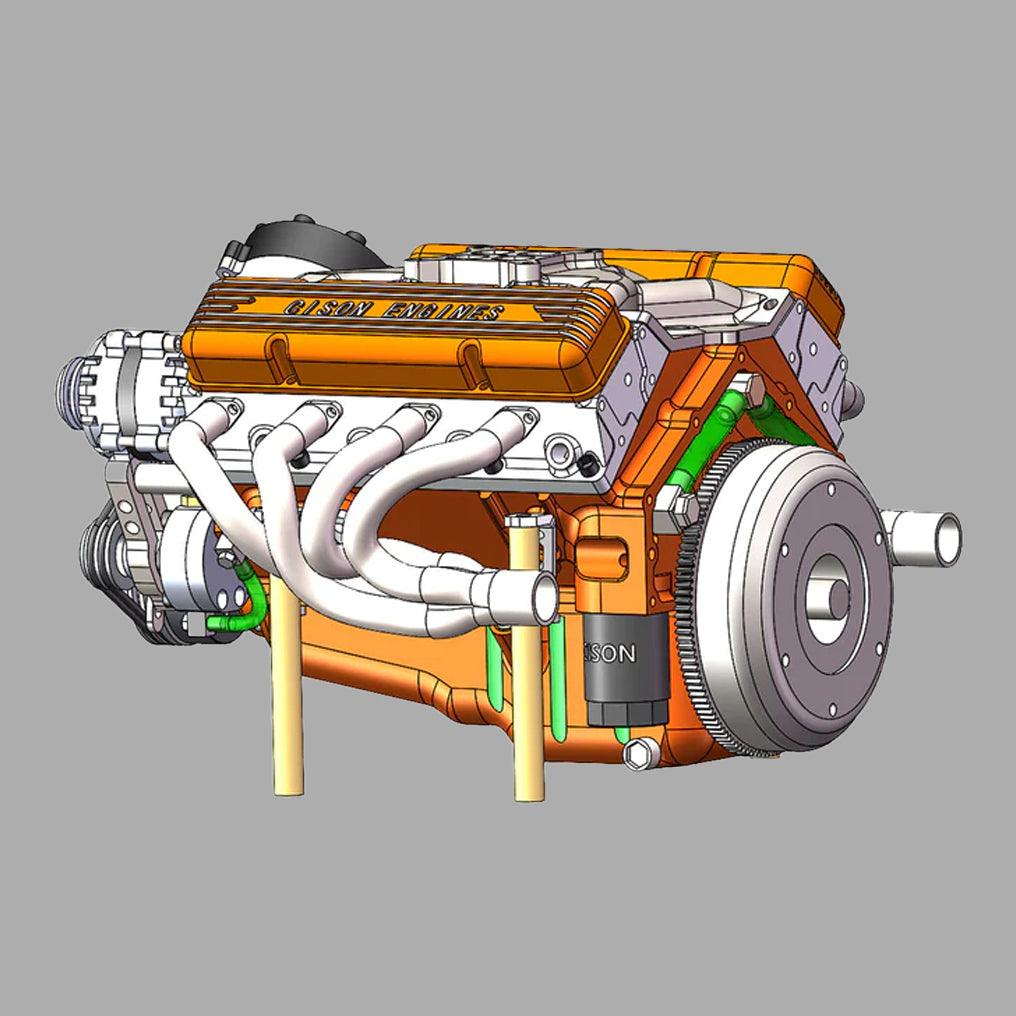

CISON Small-block V8 44CC 1/6 Scale Water-Cooled 4-Stroke 8-Cylinder Gasoline Engine Internal Combustion Model (KIT Version)

Know More About CISON Small-block V8 Engine:

Following in the footsteps of CISON's successful single-cylinder, V2, and L4 engine models, we are excited to introduce the Small-block V8. This scaled-down powerhouse, inspired by both Ford and Chevrolet V8 designs, is sure to impress enthusiasts with its impressive features. The V8-440(Flathead) design draws from the Ford V8, while the V8-440(OHV) takes inspiration from the Chevrolet V8, both with a highly realistic appearance. With an electroplated orange finish, a high-stroke and 4-point supported camshaft, larger intake valves compared to exhaust valves, a 5-point supported crankshaft, reinforced and hardened connecting rods, and optional dual cast iron piston rings, this engine is equipped for maximum performance. It also boasts an independent lubrication system and double-layer gear pump water pump, making it a versatile "powerhouse" that can be used with RC models for increased torque and power output.

• DIY Fun: Discover the inner workings of combustion engines with the V8 Engine Model Kit. Featuring high-precision parts and clear assembly instructions, this 1/6 scale engine provides a hands-on learning experience. Crafted with accuracy and ease of use in mind, it's the perfect tool for understanding engine structures and mechanical principles.
• Highly Realistic: Experience the power and precision of our V8 Engine Model Kit. With its exquisite electroplated paint finish, it boasts a realistic appearance that will impress any engine enthusiast. Our 1/6 scale engine is not only suitable for real fuel operation, but also has the option for generator installation. Own a piece of engineering excellence today.
• Precision Manufacturing: The cylinder is expertly machined with a 5-axis CNC, ensuring a repeatability rate of 0.005mm for precise assembly.
• Long Stroke: This model features a durable high-angle, high-hardness camshaft with 4-point support, a larger intake valve, and a low-temperature intake pipe, making it resistant to wear and temperature changes.

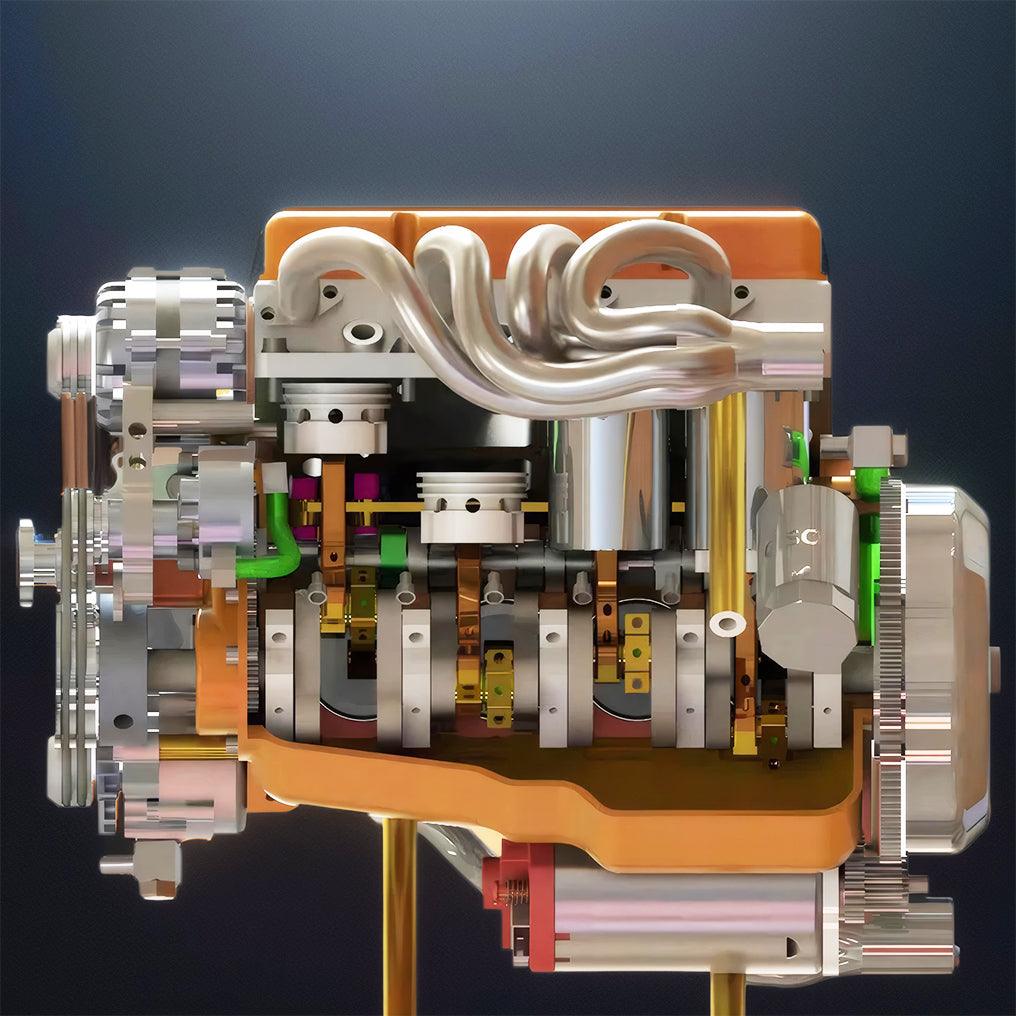

• Crankshaft and Connecting Rods: Enhanced and fortified wear-resistant connecting rods, the option for dual cast iron piston rings (with the ability to add oil rings if desired), and a 5-point supported crankshaft for enhanced strength and stability during high-speed operation.
• Durable Operation: This model features a dual-layer gear water pump, self-sufficient lubrication system, and a designated location for oil filter installation. The OHV version can be paired with a forced lubrication system for the rocker arm, which returns lubricant to the cylinder block holes, along with an oil sump equipped with an oil level gauge.
• Creative Gift: This fully constructed engine model is ideal for display on a desk or installation in RC models. It also makes for an excellent holiday gift for enthusiasts.
• Age Recommendation: 16+

Specifications:

• Material: Metal
• Brand: CISON
• Model: V8-440
• Name: Small-block
• Type: KIT Version
• Engine Type: Gasoline Internal Combustion Engine
• Valve Mechanism Type: OHV/Flathead
• Displacement: 44CC (8*5.5CC)
• Cylinders: V8
• Stroke: 4-Stroke
• Bore Diameter: 18.5mm
• Stroke Length: 20.5mm
• RPM Range: 1500-10000rpm(OHV)  1500-7500rpm(Flathead)
• Power: Approx. 4.8hp(OHV)  3.3hp(Flathead)
• Cooling Method: Water-Cooled
• Lubrication Method: Independent Lubrication System
• Start Method: Electric Start
• Ignition Method: Distributor Ignition (High-Performance CDI Ignition, Frequency 42000)
• Spark Plug Type: 1/4-32 ME8 Type Spark Plug
• Starting Power Source: 6-12V (Recommended 2S-3S Lipo Battery)
• Fuel Type: Gasoline (Recommended 92# and Above Gasoline)
• Lubricating Oil Type: 2T Engine Oil (Recommended 10W50 2T Engine Oil)
• Product Weight: 1700g
• Product Dimensions: 14 x 9.3 x 10cm
• Package Dimensions: 30 x 20 x 20cm
• Package Weight: 2500g
• Packing: Gift Box

Package List:

• 1 x CISON V8 Engine Model Kit
• 1 Set Accessories for CISON V8 Engine
• 1 x Instructions for CISON V8
