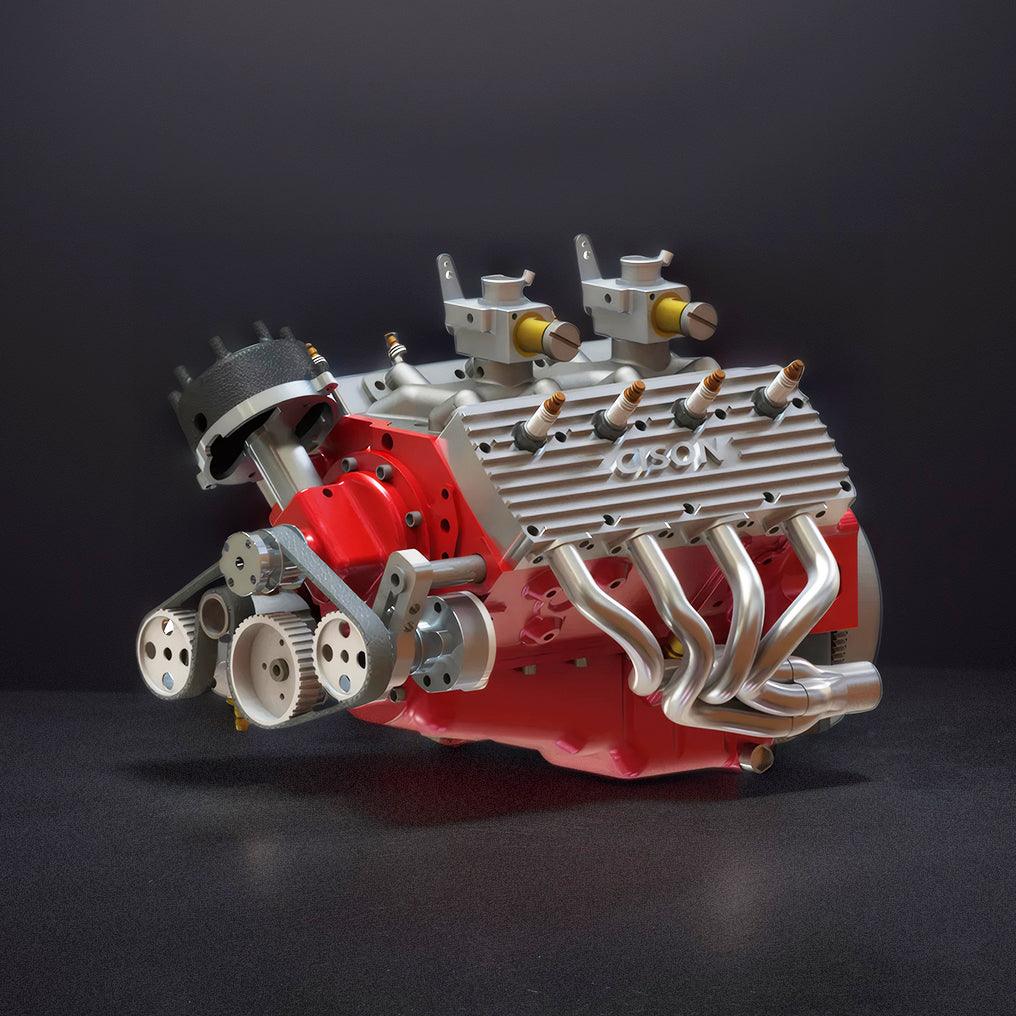

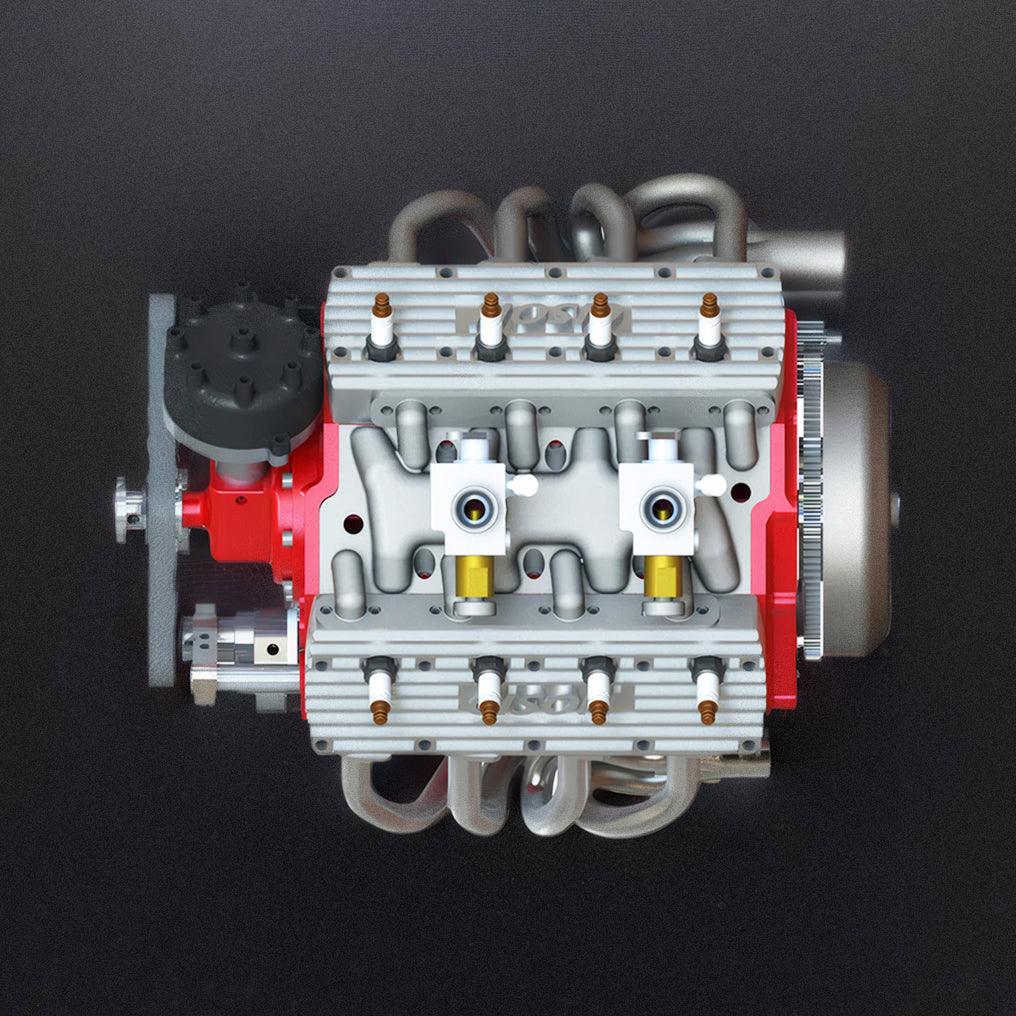

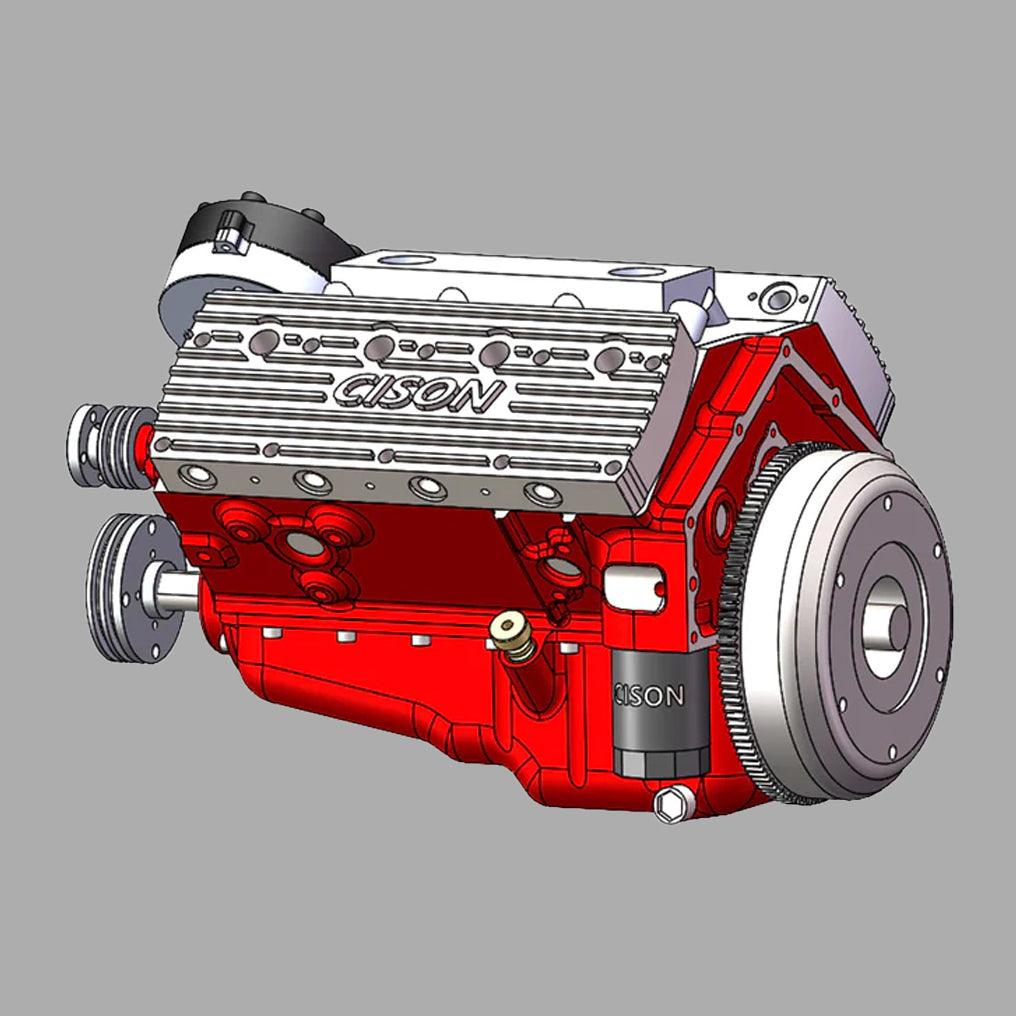

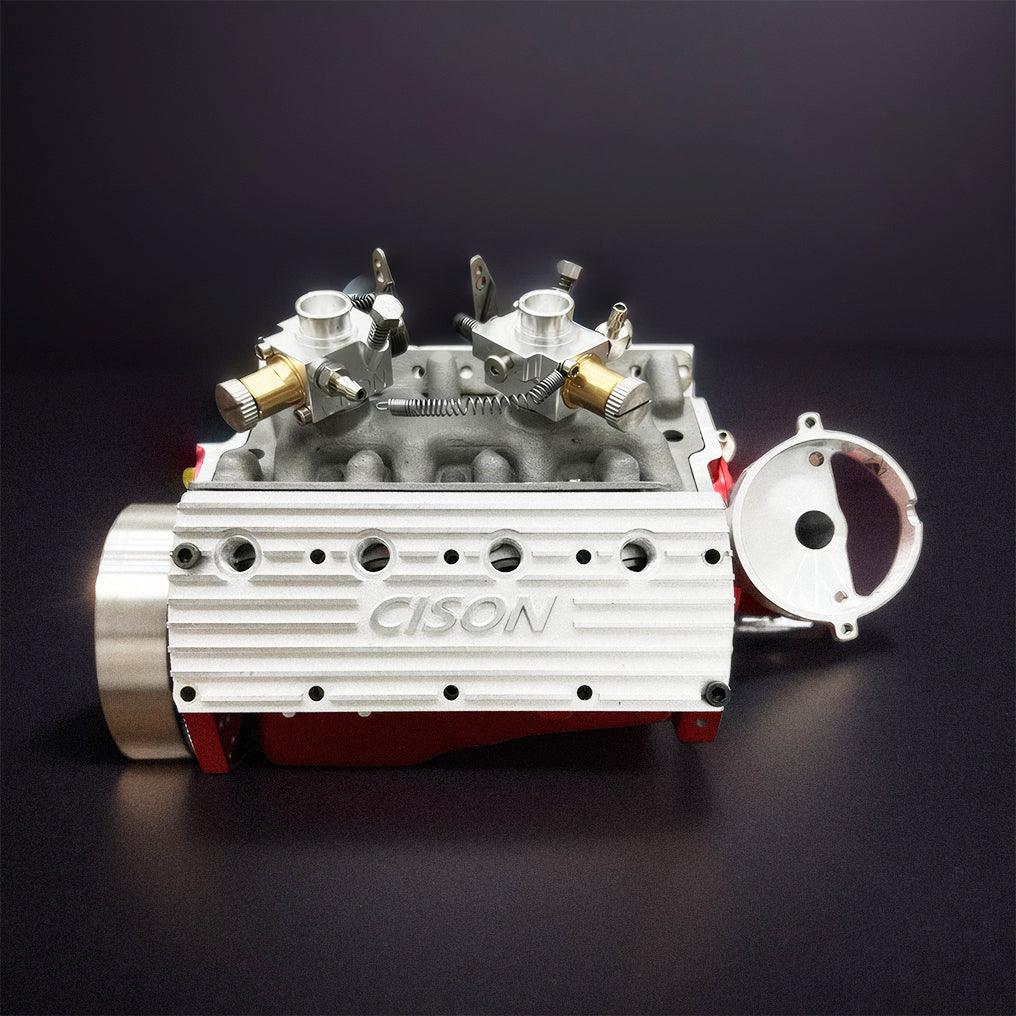

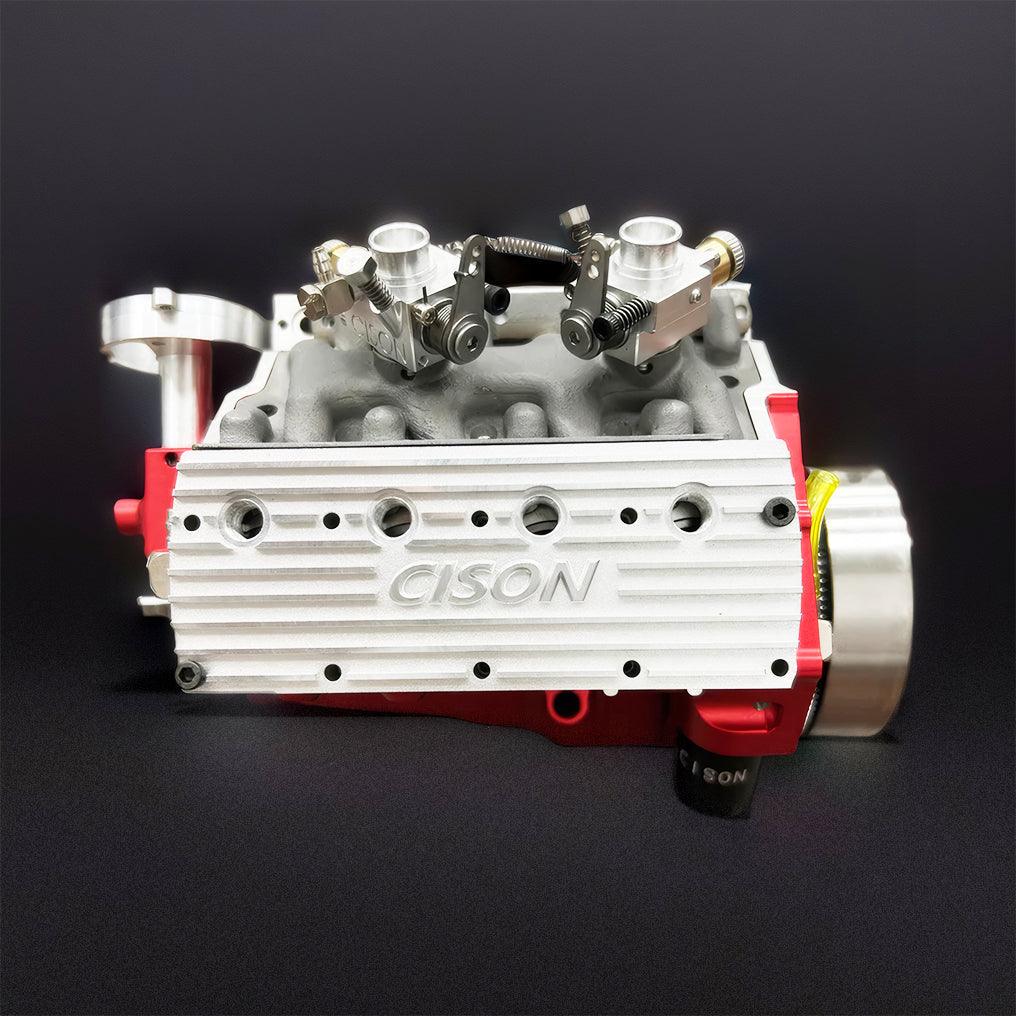

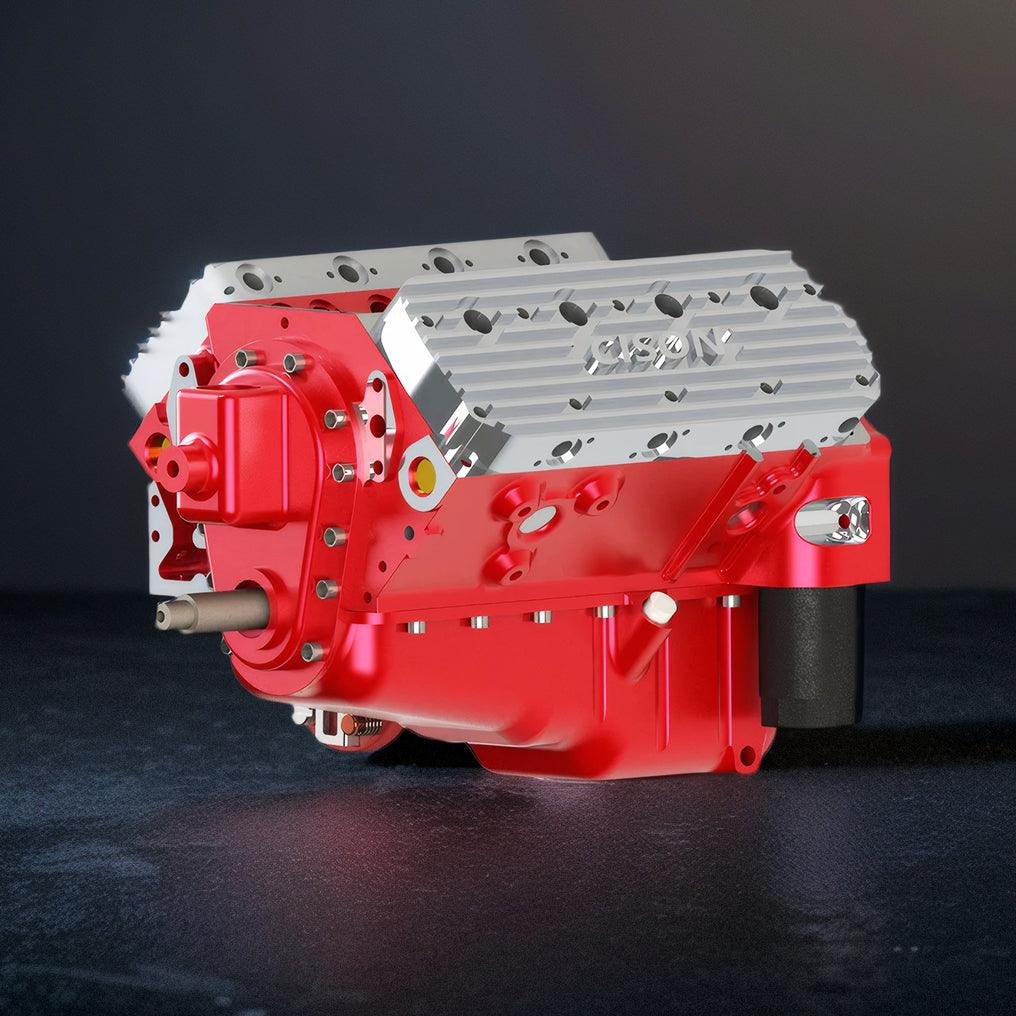

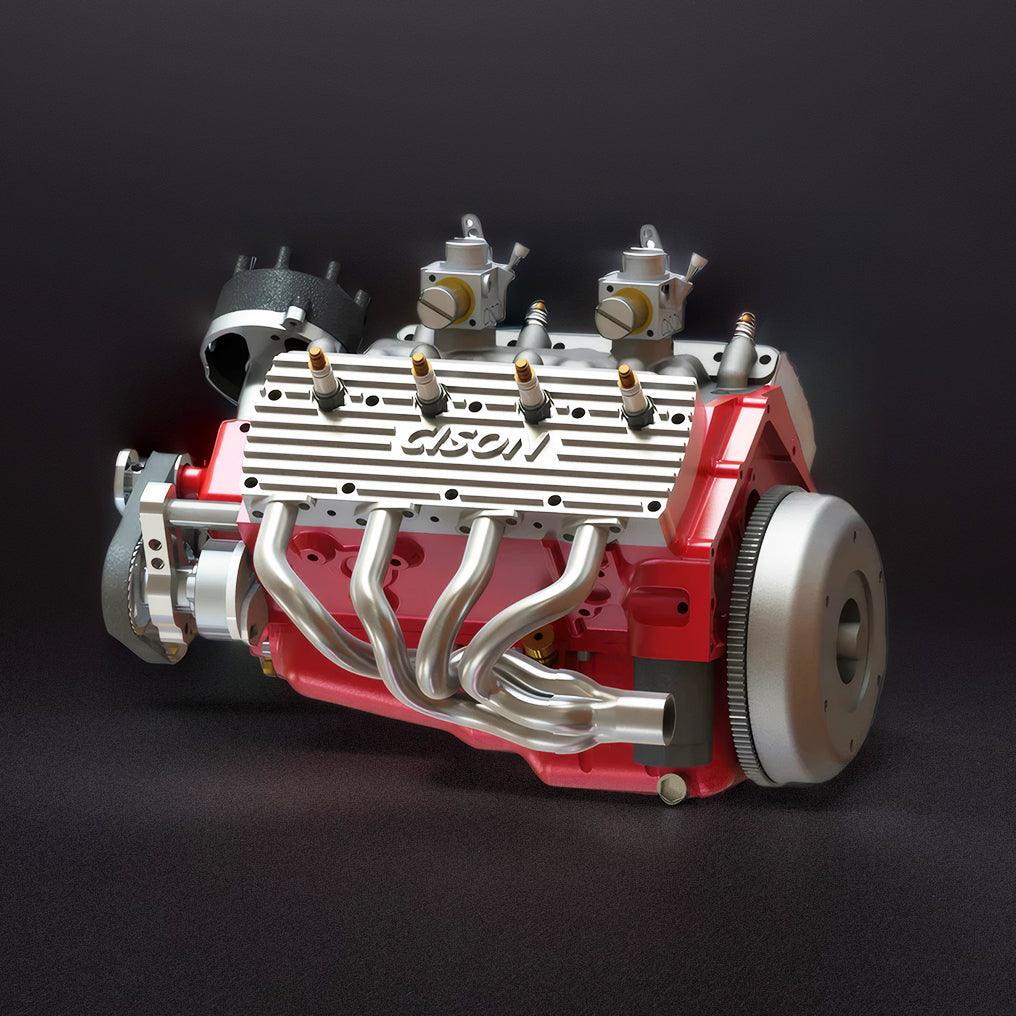

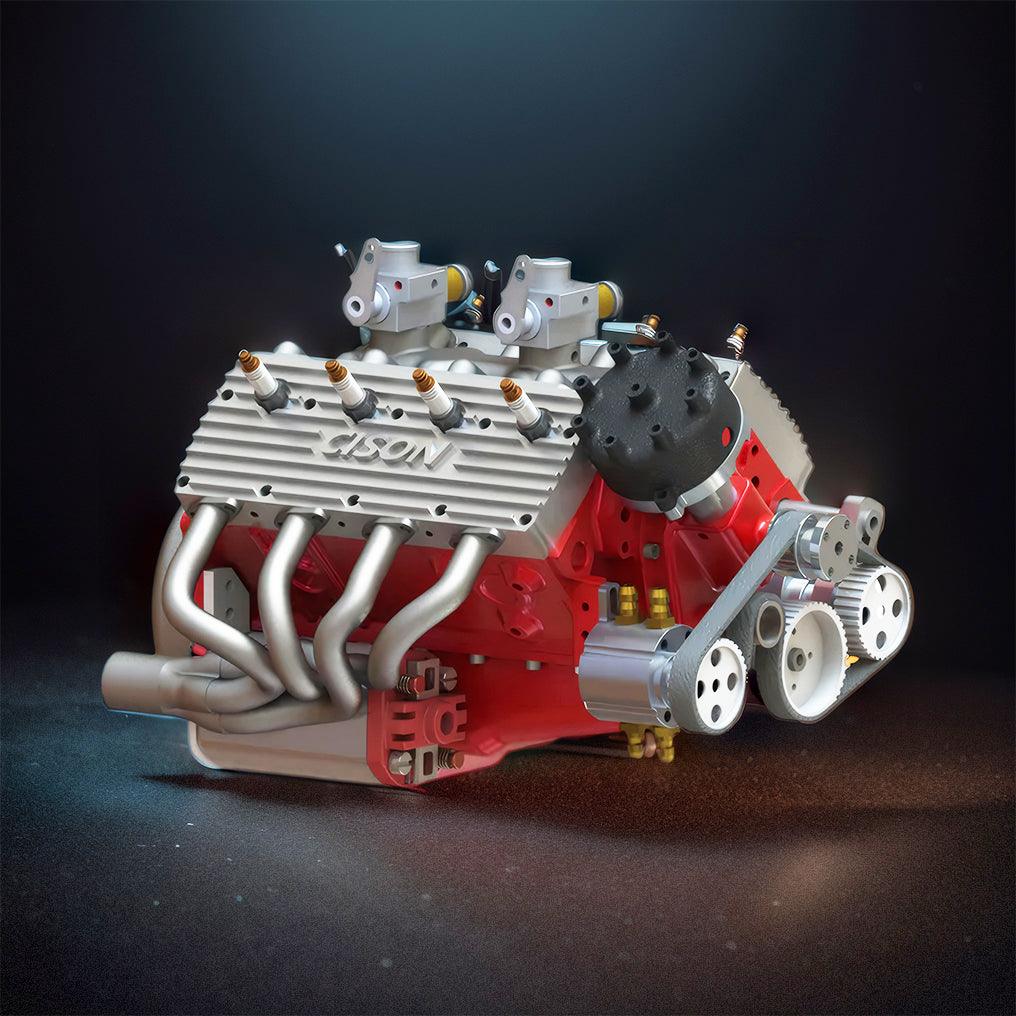

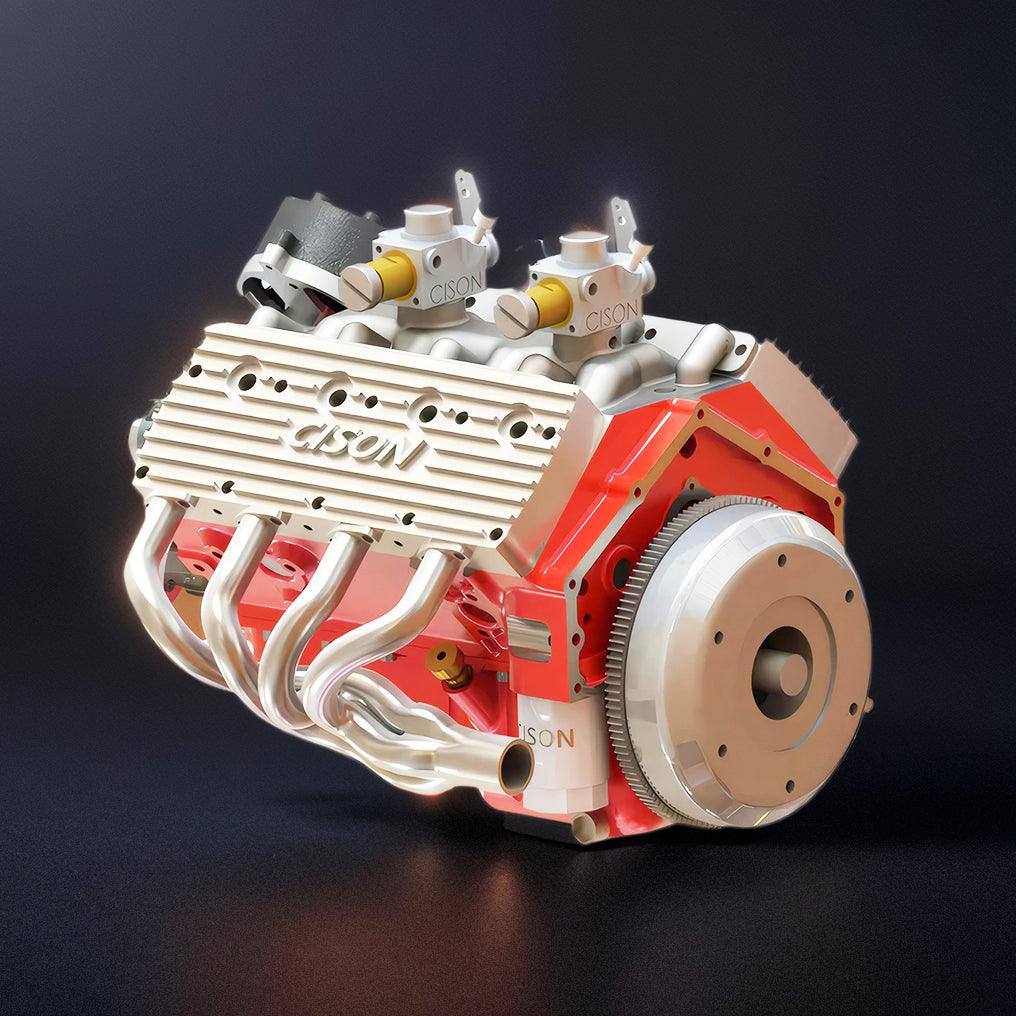

CISON V8 Engine Model Kit - Small-block 44CC 1/6 Scale Water-Cooled Flathead 4-Stroke V8 Gas Engine - Build Your Own V8 Engine that Works

Features:

• Introduction: Introducing the Small-block V8, a mini powerhouse from CISON. This scaled down engine model, inspired by the iconic Ford and Chevrolet V8 designs, boasts impressive features such as reinforced connecting rods, a 5-point supported crankshaft, and an independent lubrication system. With exquisite electroplated paint in orange, high-stroke camshaft, and a double-layer gear pump water pump, this V8-440 engine is not only a roaring beast on your desk, but also a high-performing addition to your RC models. Don't miss out on this classic in the world of scaled engines.
• DIY Fun: Precision-crafted parts and detailed assembly instructions allow for a thorough understanding of engine mechanics and structure, facilitating a hands-on learning experience in mechanical principles.
• Highly Realistic: Experience realistic engine aesthetics with the use of high-quality electroplated paint. This 44CC model kit allows for actual fuel utilization and can accommodate an optional generator.

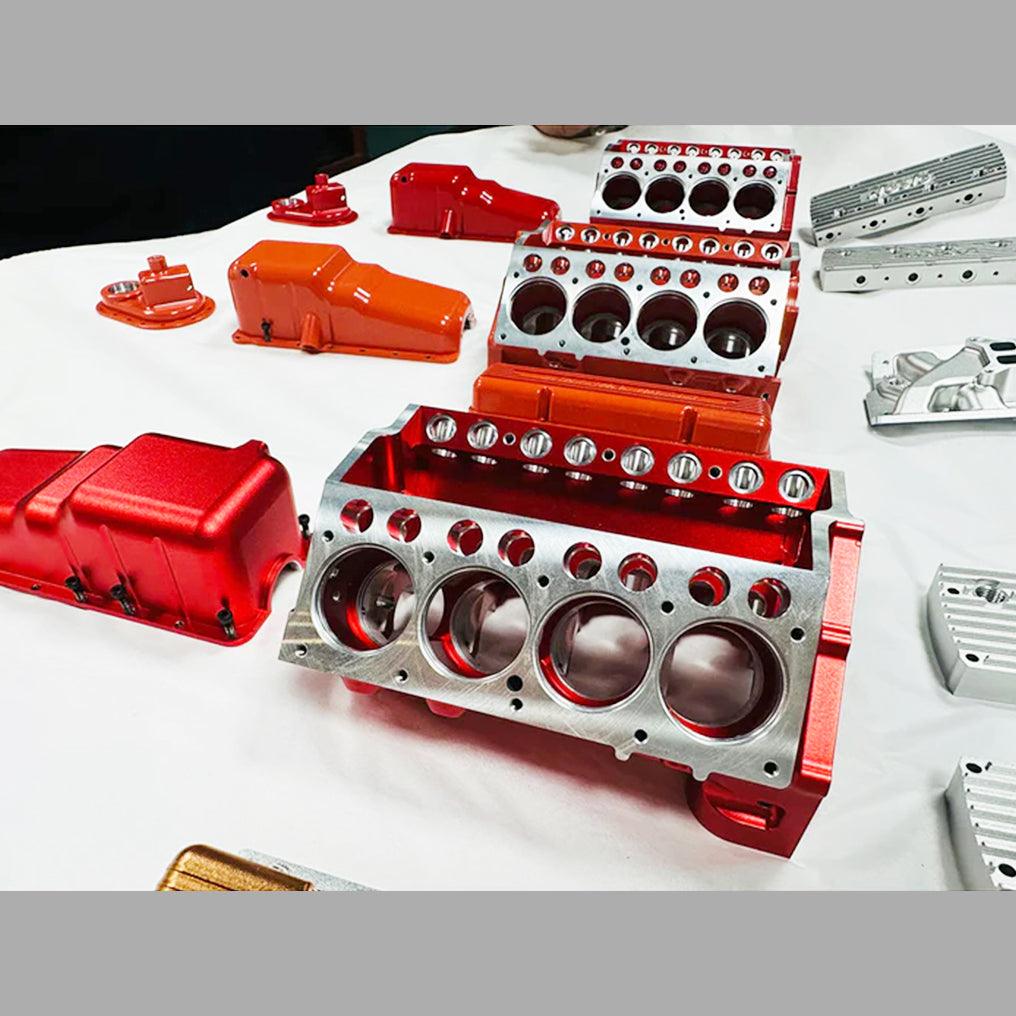

• Precision Manufacturing: The engine's cylinder is crafted with precision using 5-axis CNC technology, allowing for a repeatability of 0.005mm and ensuring improved assembly accuracy.
• Long Stroke: This product features a high-angle, high-hardness wear-resistant camshaft, supported at 4 points and equipped with a larger intake valve. The intake pipe is designed to remain unaffected by temperature changes, guaranteeing consistent performance.

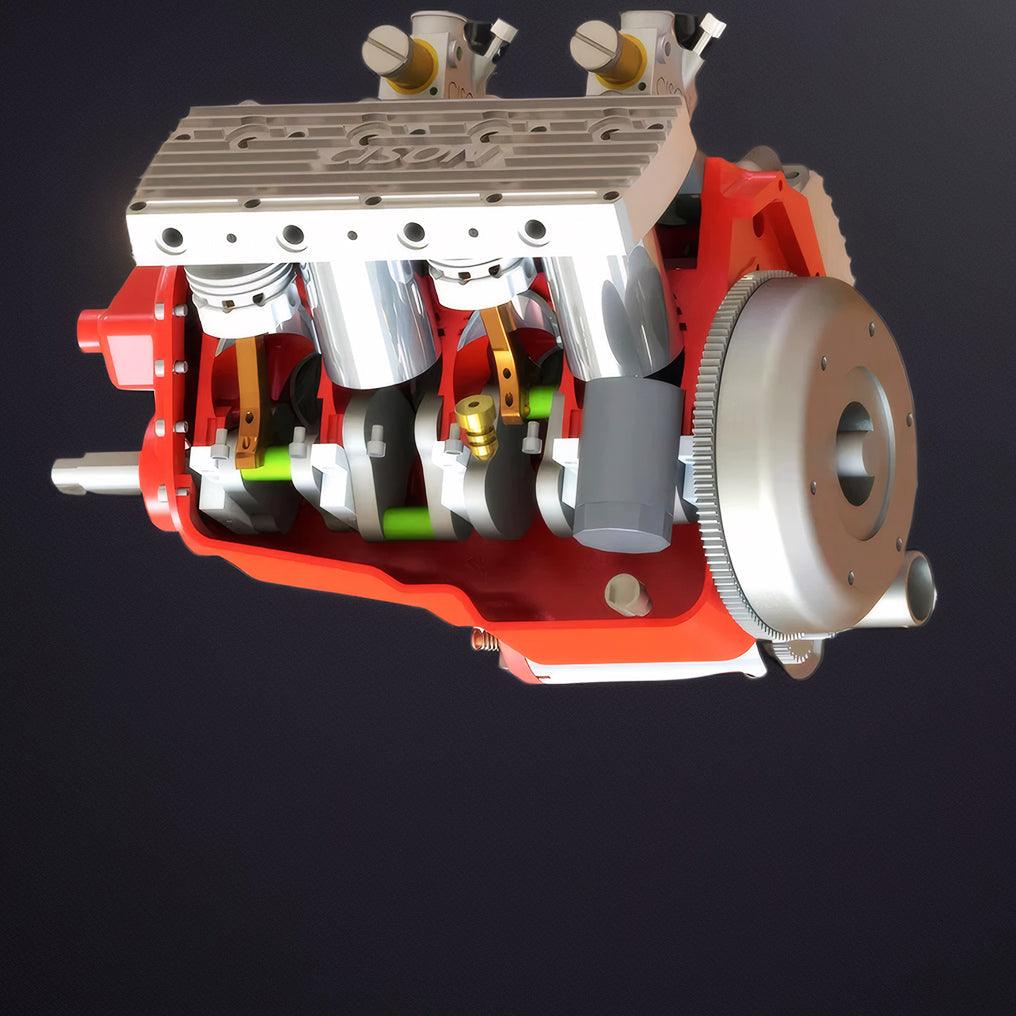

• Crankshaft and Connecting Rods: Utilize upgraded and strengthened wear-resistant connecting rods, choose between dual cast iron piston rings (optional oil rings), and a 5-point supported crankshaft for enhanced high-speed durability and stability during operation.
• Durable Operation: Featuring a two-stage gear water pump, self-contained oil system, and designated location for oil filter installation, this OHV model can be paired with a rocker arm forced lubrication system that returns lubricant directly to the cylinder block holes and an oil sump with a built-in oil level gauge.

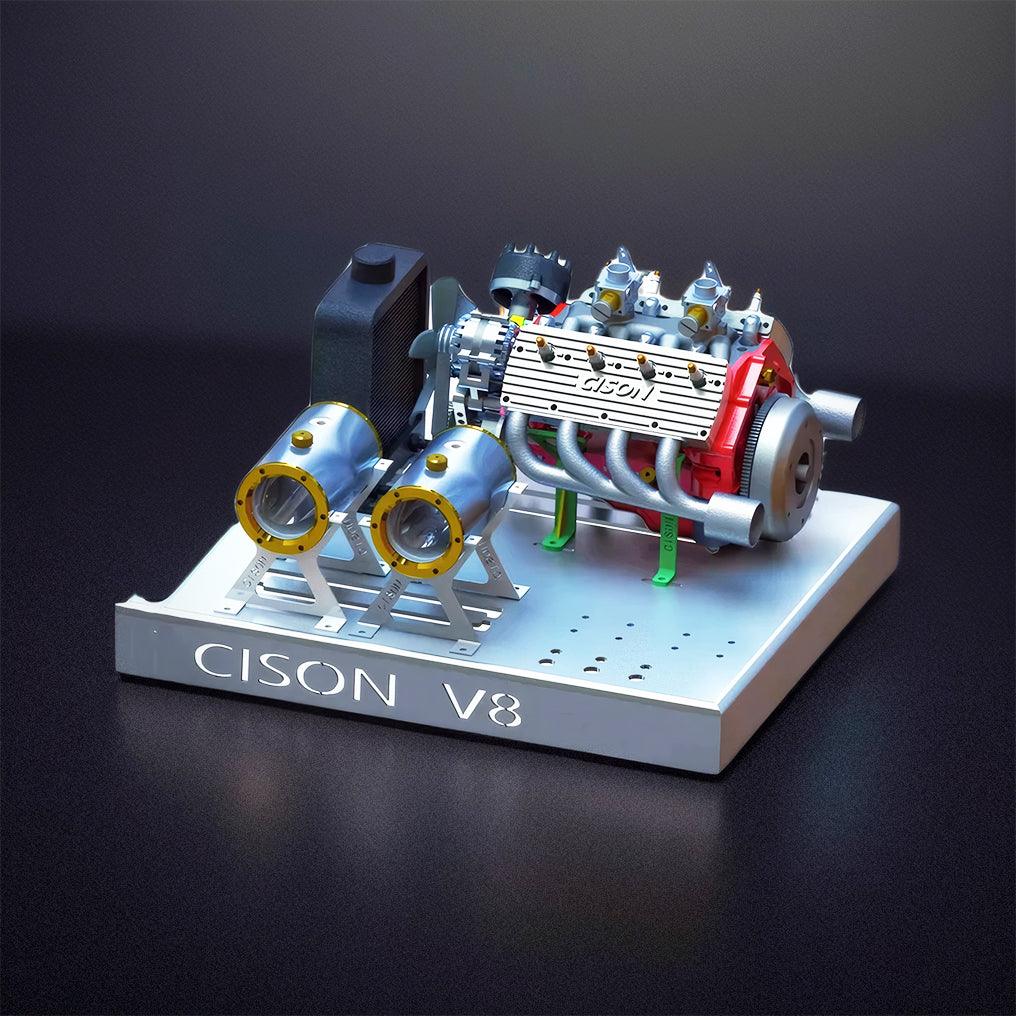

• Creative Gift: The assembled model is perfect as a collectible desktop engine model or be installed in RC models, as well as a premium model holiday gift.

Specifications:

• Material: Metal
• Brand: CISON
• Model: V8-440(Flathead)
• Name: Small-block
• Type: KIT Version
• Engine Type: Gasoline Internal Combustion Engine
• Valve Mechanism Type: Flathead
• Displacement: 44CC (8*5.5CC)
• Cylinders: V8
• Stroke: 4-Stroke
• Bore Diameter: 18.5mm
• Stroke Length: 20.5mm
• RPM Range: 1500-7500rpm
• Power: Approx. 3.3hp
• Cooling Method: Water-Cooled
• Lubrication Method: Independent Lubrication System
• Start Method: Electric Start
• Ignition Method: Distributor Ignition (High-Performance CDI Ignition, Frequency 42000)
• Spark Plug Type: 1/4-32 ME8 Type Spark Plug
• Starting Power Source: 6-12V (Recommended 2S-3S Lipo Battery)
• Fuel Type: Gasoline (Recommended 92# and Above Gasoline)
• Lubricating Oil Type: 2T Engine Oil (Recommended 10W50 2T Engine Oil)
• Product Weight: 1600g
• Product Dimensions: 14 x 9.3 x 10cm
• Package Dimensions: 30 x 20 x 20cm
• Package Weight: 2400g
• Packing: Gift Box
• Ages: 16+
